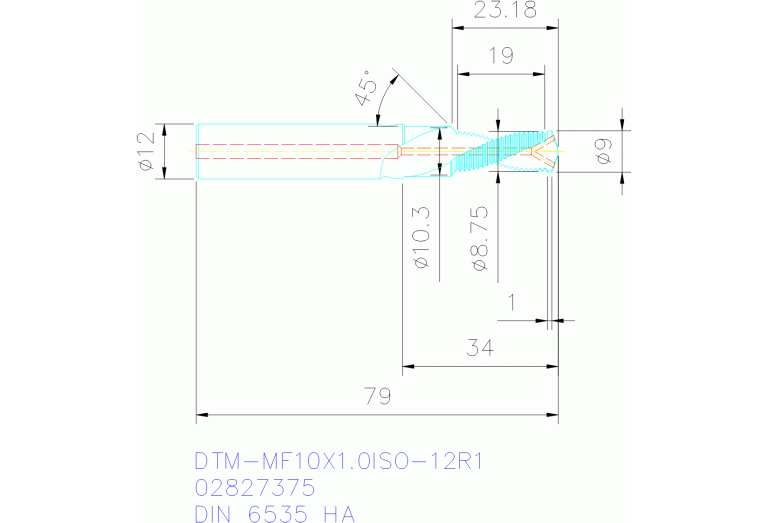

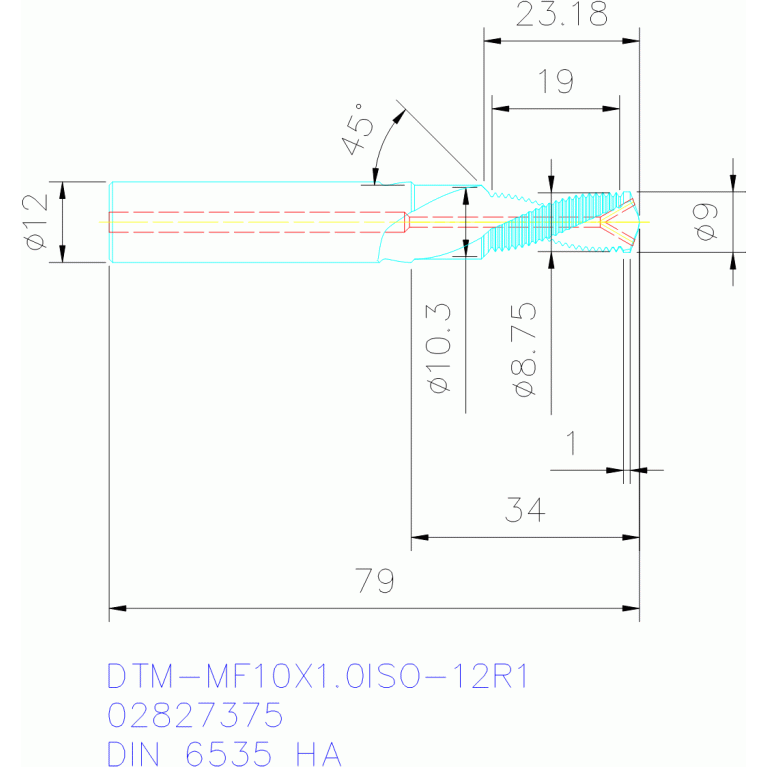

DTM-MF10X1.0ISO-12R1

DTM-MF10X1.0ISO-12R1 DTM-MF10X1.0ISO-12R1 DTM-MF10X1.0ISO-12R1 DTM-MF10X1.0ISO-12R1

DTM-MF10X1.0ISO-12R1

SECO Tools
Артикул: 02827375
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCD Drilling diameter
9 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
8.75 mm
Delivery state valid from
12/1/2023
DIN
ZYL01200105
FamilyProducts
DTM-MF10X1.0ISO-12R1
HAND Cutting direction
R - Right
ID Technical product number
02827375
Interface codes
J6 /
ISYC Subclass
303-11 - Thread end mill with drilling part
LH Head length
21.8 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01200105
LPR Protruding length
34 mm
LS Shank length
45 mm
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
DTM-MF10X1.0ISO-12R1
OAL Overall length
79 mm
PRFA Profile included angle
140 Degree
RPMX Rotational speed maximum
25000 1/min
TD Thread diameter
10 mm
THFT Thread form type
M
TP Thread pitch
1 mm
Working process
No working processes available
WT Weight of item
0.089 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
