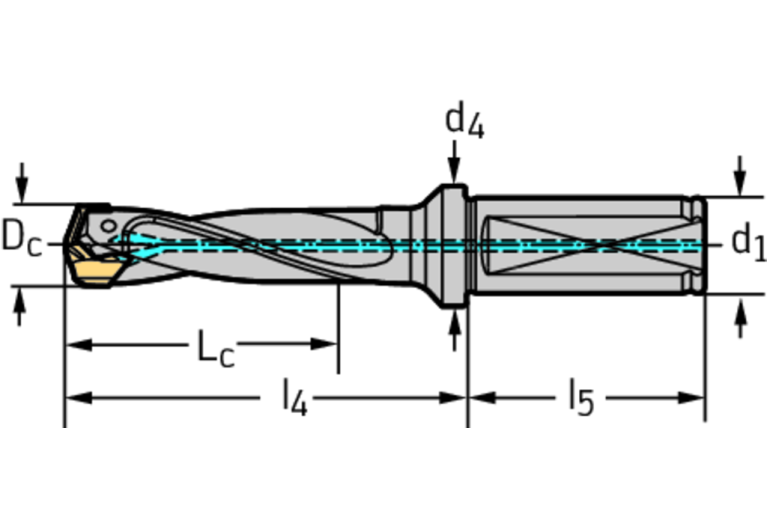

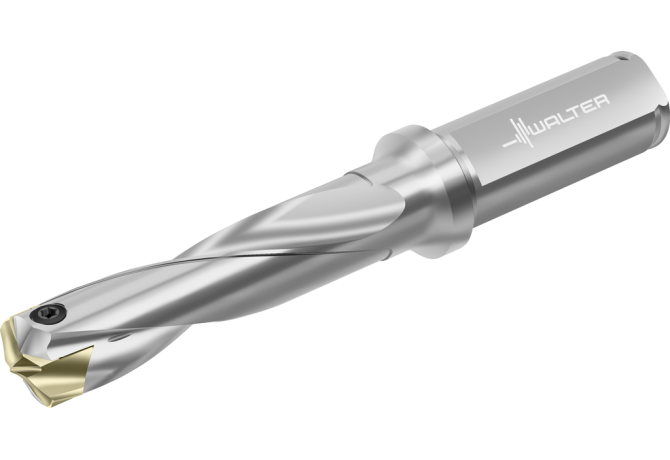

D4140-03-19.00F20-D

Артикул: 7169805

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

19 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

19.99 mm

Delivery state valid from

12/1/2023

DIN

ZYL02001115

FamilyProducts

Exchangeable-tip drills D4140

FHA Flute helix angle

20 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

7169805

Interface codes

J6 / J61

ISO

ZYL11G2000h$06

ISYC Subclass

306-10 - Twist drill for drilling blades or drilling inserts

LCF Length chip flute

76 mm

LF Functional length

92.542 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$06

LOC-03 ISO

ZYL11G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001115

LPR Protruding length

96 mm

LS Shank length

50 mm

LU Usable length

61 mm

MTP Clamping type code 1st step

C - Top clamping, without bore

Name Identifying order number

D4140-03-19.00F20-D

OAL Overall length

146 mm

PL Point length

3.458 mm

RPMX Rotational speed maximum

13400 1/min

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.263 kg
