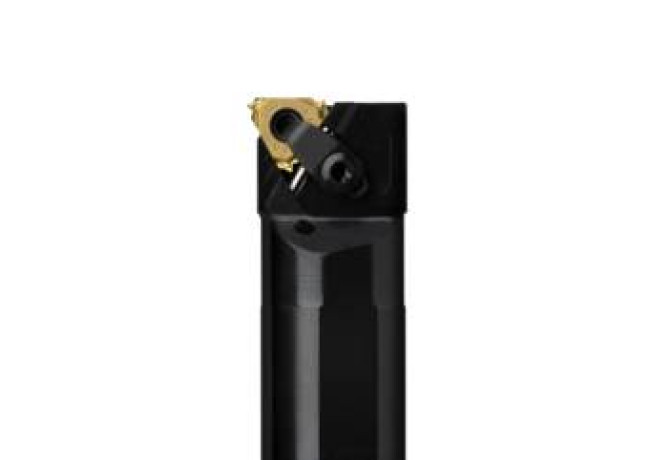

CNL0015012-22AHD

CNL0015012-22AHD CNL0015012-22AHD CNL0015012-22AHD CNL0015012-22AHD

CNL0015012-22AHD

SECO Tools
Артикул: 02562805
В наличии
В корзину
Описание
Характеристики
A1A SKJ Cutting edge angle major Pos. A
6
A61A SKJ Thread pitch minimum
1.5 mm
BLDA SKJ Tool style code Position A
6
C8A SKJ Spitzenradius Schneidkörper Pos.A
0.22 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL03812215
DIN CSW1
SO-SO 22ER
DMIN Minimum bore diameter
45.72 mm
FamilyProducts
CNL0015012-22AHD
G3A SKJ Eingeschriebener Kreis Schneidkörper Pos.A
12.7 mm
G7A SKJ Schneidkantenhöhe Schneidkörper Pos.A
4.71 mm
HAND Cutting direction
L - Left
ID Technical product number
02562805
Interface codes
J6 /
Interface codes CSW1
J41 / J441
ISO CSW1
SO$$NL22L
ISYC Subclass
309-03 - Boring bar for internal threading

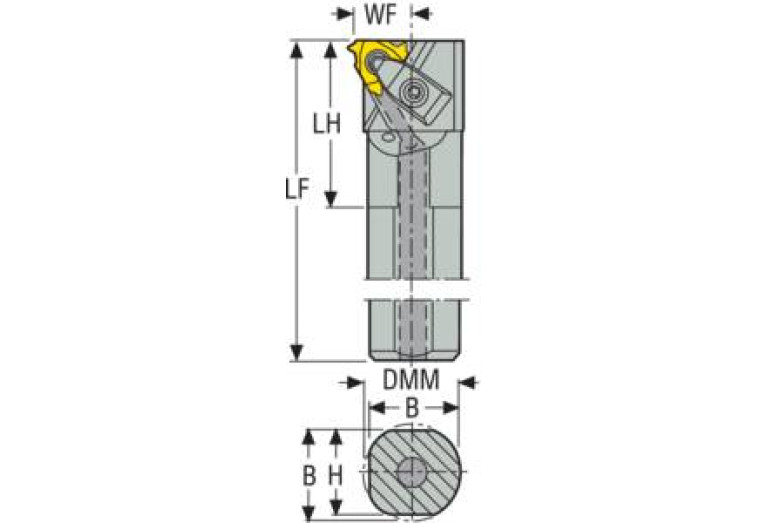

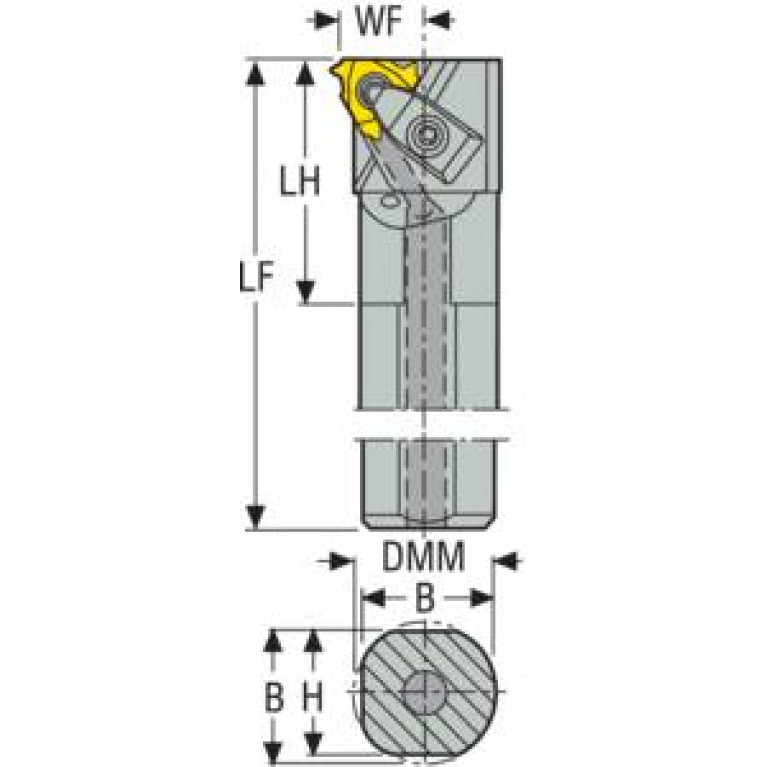

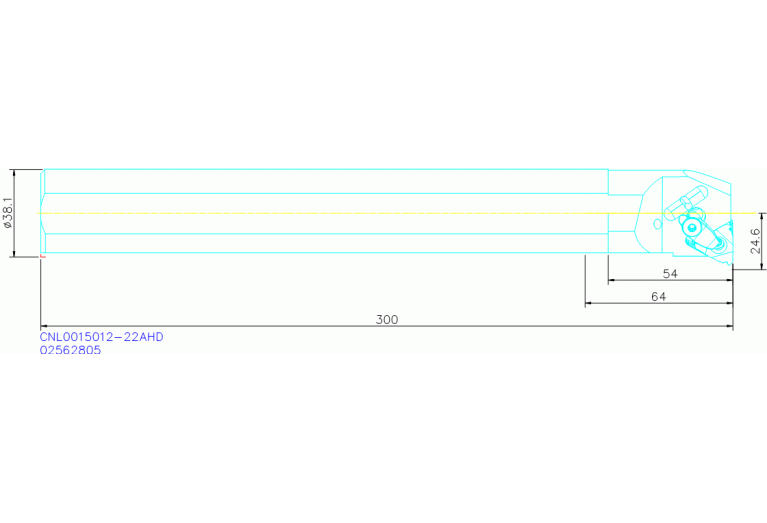

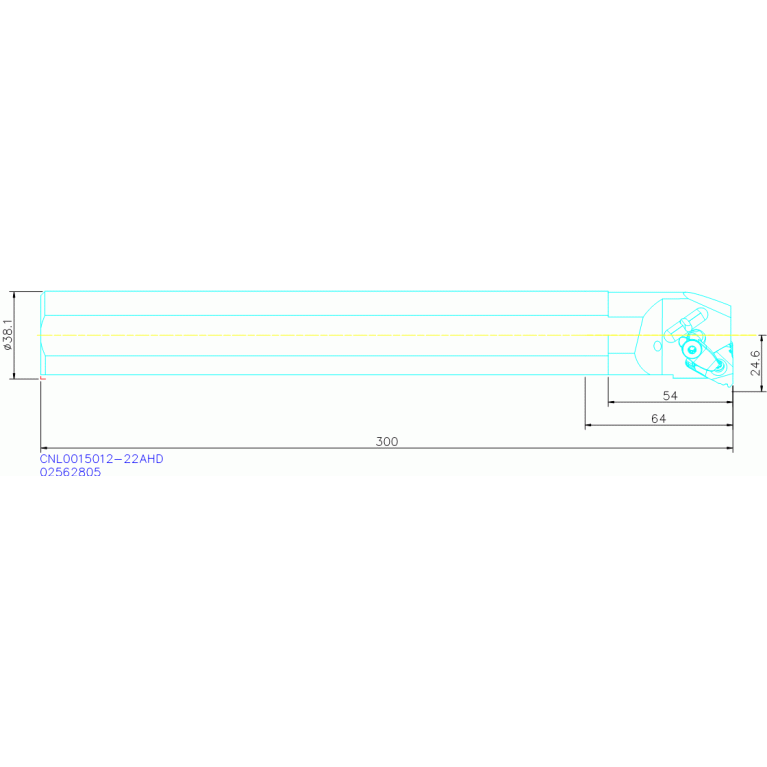

LF Functional length
300 mm
LH Head length
54 mm
LOC-03 B Shank width
36.25 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0381
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 H Shank height
34 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03812215
MIID Master insert identification
ISO SO$$NL22L
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
CNL0015012-22AHD
WF Functional width
30.05 mm
Working process
No working processes available
WT Weight of item
2.3 kg
