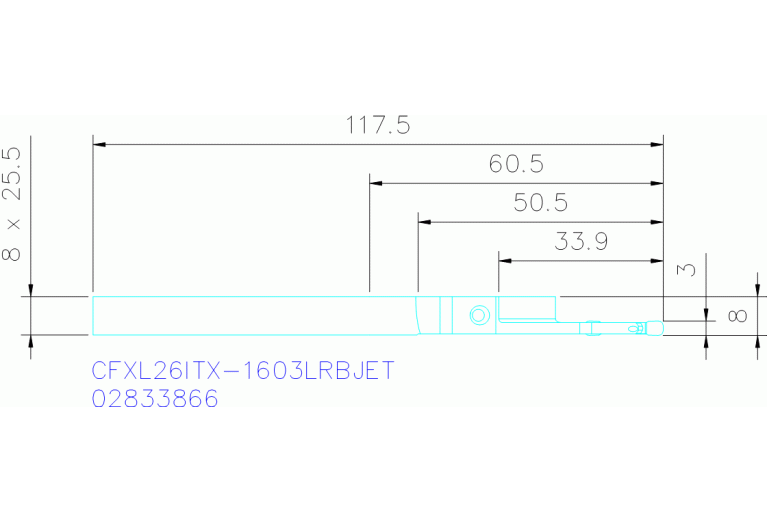

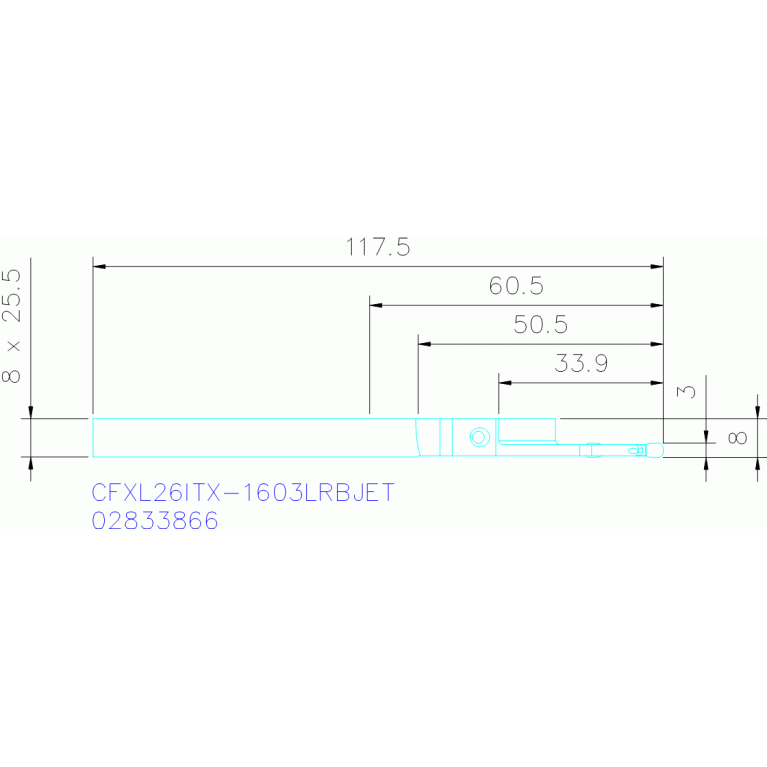

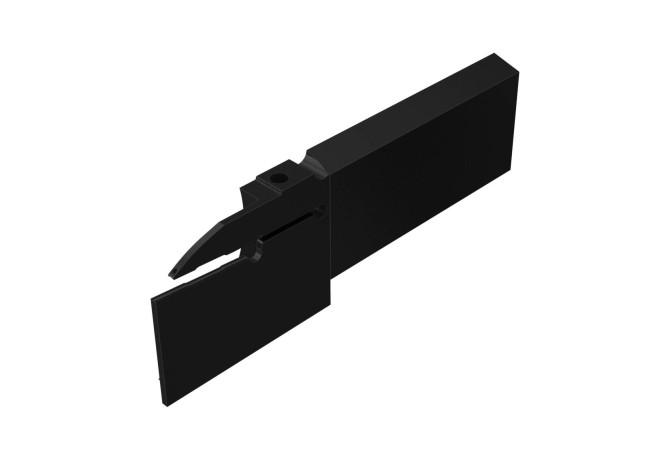

CFXL26ITX-1603LRBJET

Артикул: 02833866

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

32 mm

CODX Cut off diameter maximum

65 mm

COMPC Company code

SO - SECO Tools

CW Cutting width

3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

LC1603 1N

FamilyProducts

CFXL26ITX-1603LRBJET

HAND Cutting direction

L - Left

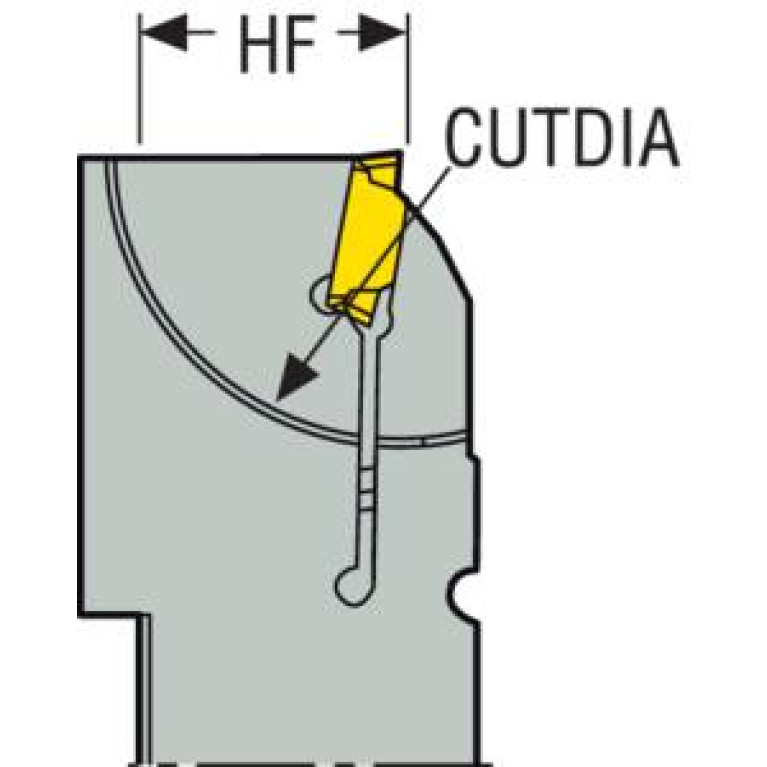

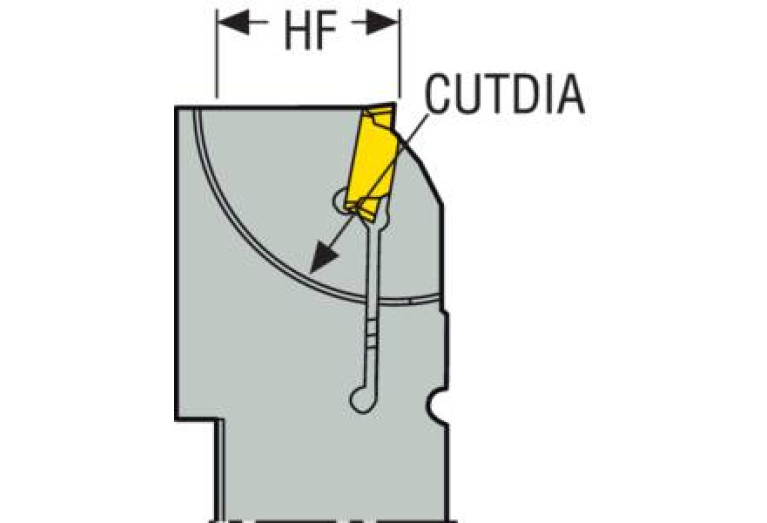

HF Functional height

21.4 mm

ID Technical product number

02833866

Interface codes

Interface codes CSW1

J41 /

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LF Functional length

117.5 mm

LH Head length

50.5 mm

LOC-03 B Shank width

7.9 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 H Shank height

25.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

CFXL26ITX-1603LRBJET

WF Functional width

8 mm

Working process

No working processes available

WT Weight of item

0.145 kg
