CER2525M16QHD

Артикул: 00016769

В наличии

В корзину

Описание

Характеристики

A1A SKJ Cutting edge angle major Pos. A

A61A SKJ Thread pitch minimum

0.5 mm

BLDA SKJ Tool style code Position A

C8A SKJ Spitzenradius Schneidkörper Pos.A

0.06 mm

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

VKT25250105

DIN CSW1

SO-SO 16ER

FamilyProducts

CER2525M16QHD

G3A SKJ Eingeschriebener Kreis Schneidkörper Pos.A

9.525 mm

G7A SKJ Schneidkantenhöhe Schneidkörper Pos.A

3.47 mm

HAND Cutting direction

R - Right

ID Technical product number

00016769

Interface codes

J6 /

Interface codes CSW1

J41 / J441

ISO CSW1

SO$$ER16R

ISYC Subclass

309-02 - Turning tool for external threading

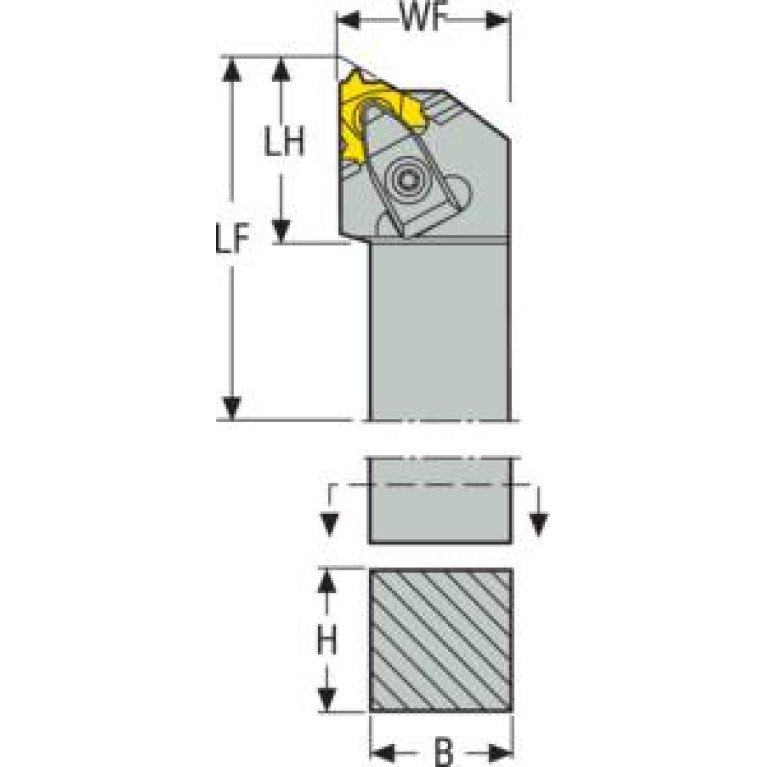

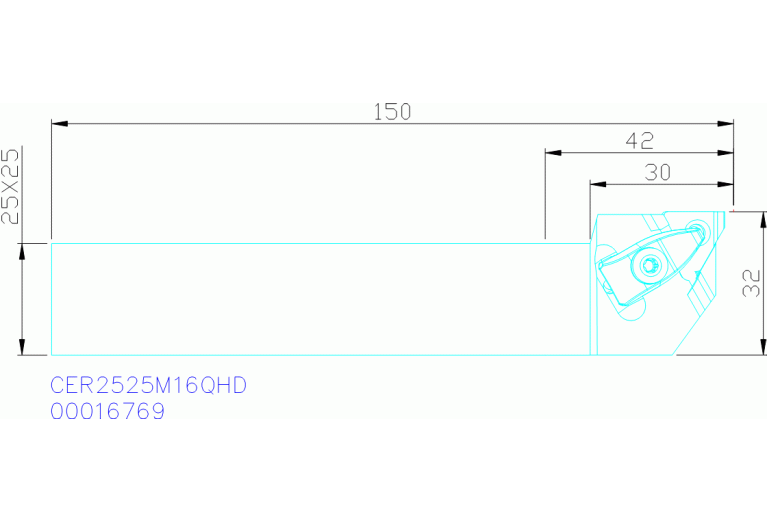

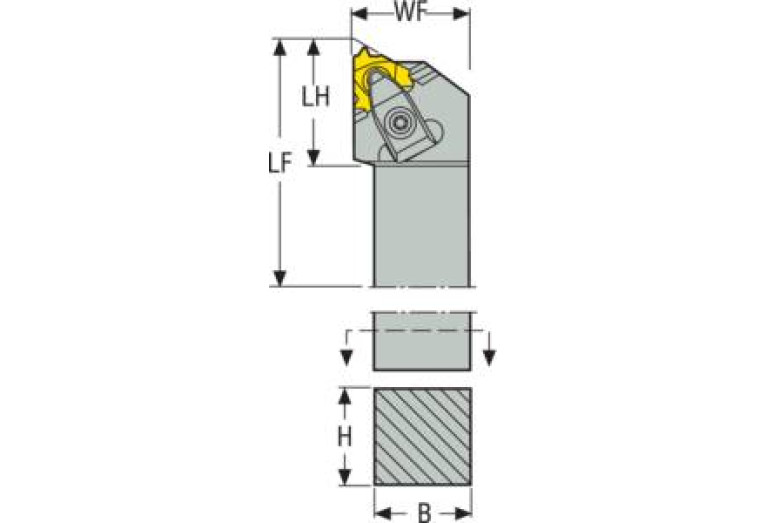

LF Functional length

150 mm

LH Head length

32 mm

LOC-03 B Shank width

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

2525

LOC-03 H Shank height

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250105

MIID Master insert identification

ISO SO$$ER16R

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

CER2525M16QHD

WF Functional width

32 mm

Working process

No working processes available

WT Weight of item

0.762 kg
