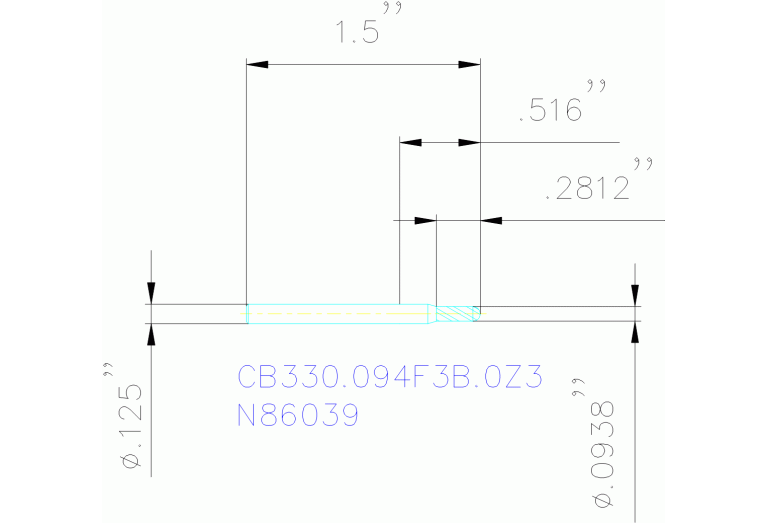

CB330.094F3B.0Z3

Артикул: 17005823

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

7.145 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

2.382 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL01250125

DN Neck diameter

2.381 mm

FamilyProducts

CB330.094F3B.0Z3

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

30 Degree

GAMP Rake angle axial

10 Degree

HAND Cutting direction

ID Technical product number

17005823

Interface codes

J6 / J61

ISO

ZYL01R1250h$05

ISYC Subclass

303-06 - Ball-nosed end mill

LN Neck length

7.144 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

0125

LOC-03 DCONMS Diameter

3.175 mm

LOC-03 ISO

ZYL01R1250h$05

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01250125

LS Shank length

28 mm

Name Identifying order number

CB330.094F3B.0Z3

NameAnsi Identifying order number inch alternative

CB330-0.094-F3-B.0-Z3

OAL Overall length

38.1 mm

PRFRAD Profile radius 1

1.191 mm

Working process

No working processes available

WT Weight of item

0.004 kg

ZEFP Peripheral effective cutting edge count
