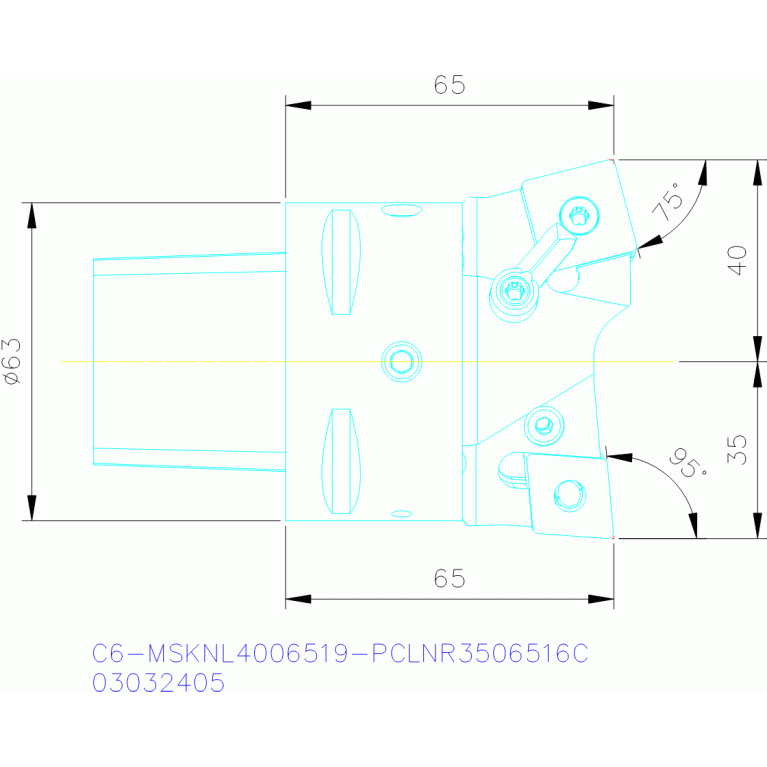

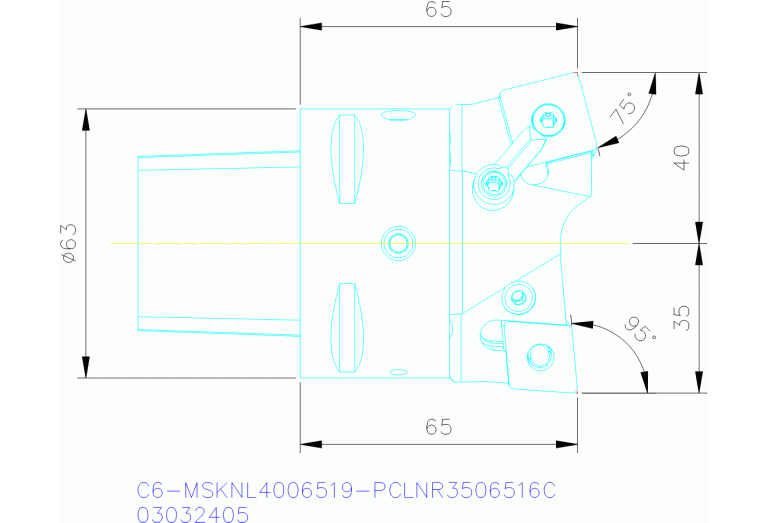

C6-MSKNL4006519-PCLNR3506516C

C6-MSKNL4006519-PCLNR3506516C C6-MSKNL4006519-PCLNR3506516C C6-MSKNL4006519-PCLNR3506516C

C6-MSKNL4006519-PCLNR3506516C

Seco
Артикул: 03032405
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS06300195
DIN CSW1
SO-CN2-1606N
FamilyProducts
C6-MSKNL4006519-PCLNR3506516C
GAMF Rake angle radial
-11 Degree
GAMO Rake angle orthogonal
-5 Degree
GAMP Rake angle axial
-2.2 Degree
HAND Cutting direction
R - Right
ID Technical product number
03032405
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-07 - System tool for external turning

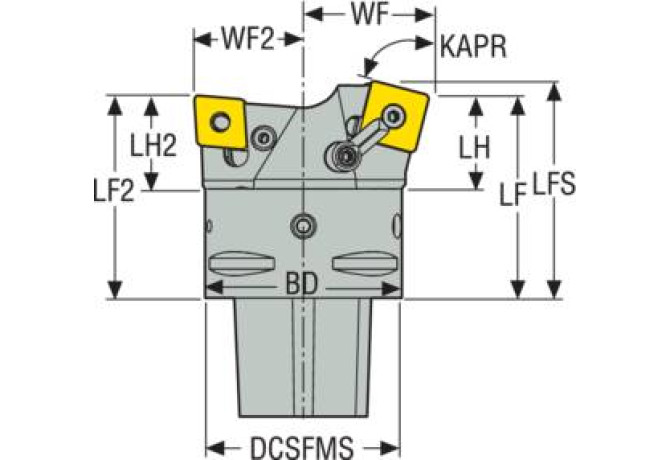

KAPR Tool cutting edge angle
75 Degree
LAMS Inclination angle
-10 Degree
LF Functional length
65 mm
LH Head length
0 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LTA Length tool assembly
65 mm
MIID Master insert identification
CN2-1606N
MTP Clamping type code
M - Top and hole clamping, with cylindrical bore
Name Identifying order number
C6-MSKNL4006519-PCLNR3506516C
STDDES Standard designation
C6-MSKNL4006519-PCLN
WF Functional width
40 mm
Working process
No working processes available
WT Weight of item
1.474 kg
