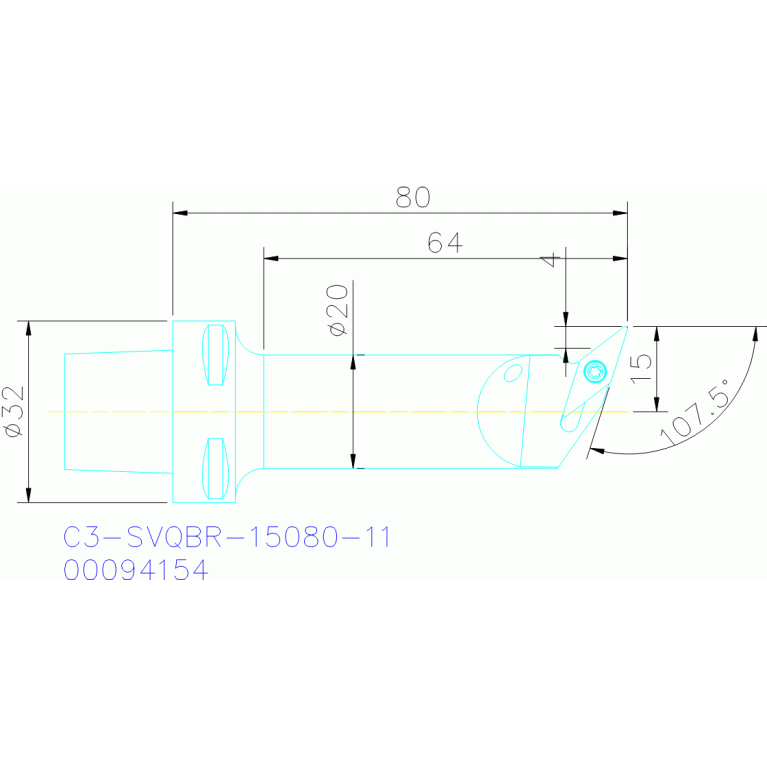

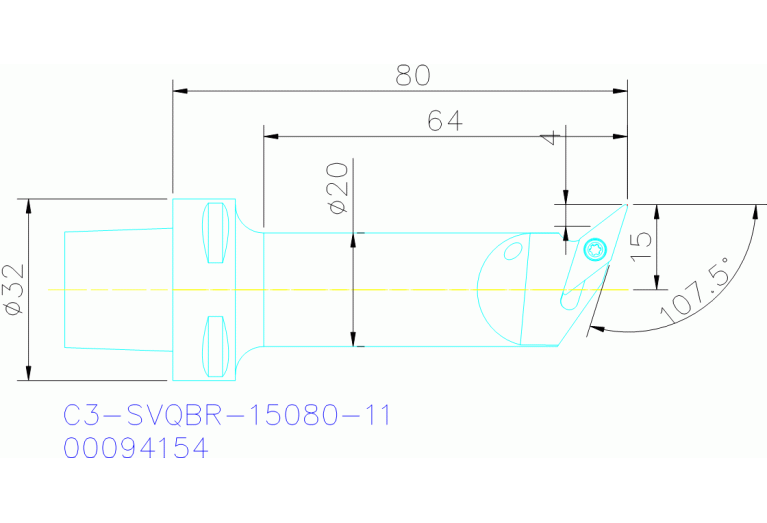

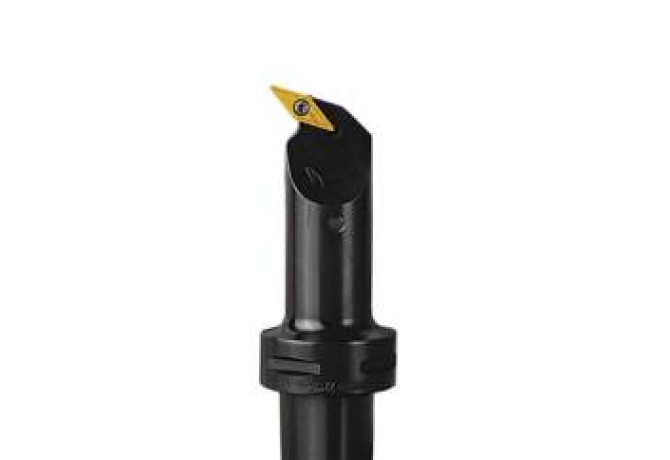

C3-SVQBR-15080-11

C3-SVQBR-15080-11 C3-SVQBR-15080-11 C3-SVQBR-15080-11 C3-SVQBR-15080-11

C3-SVQBR-15080-11

SECO Tools
Артикул: 00094154
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
5 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BDRED Body diameter reduced
20 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
2.38 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS03000195
DMIN Minimum bore diameter
27 mm
EPSR Insert included angle
35 Degree
FamilyProducts
C3-SVQBR-15080-11
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
00094154
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C0320$$$$
ISO CSW1
ISO$VB1102**3RB****
ISYC Subclass
309-09 - System tool for internal turning

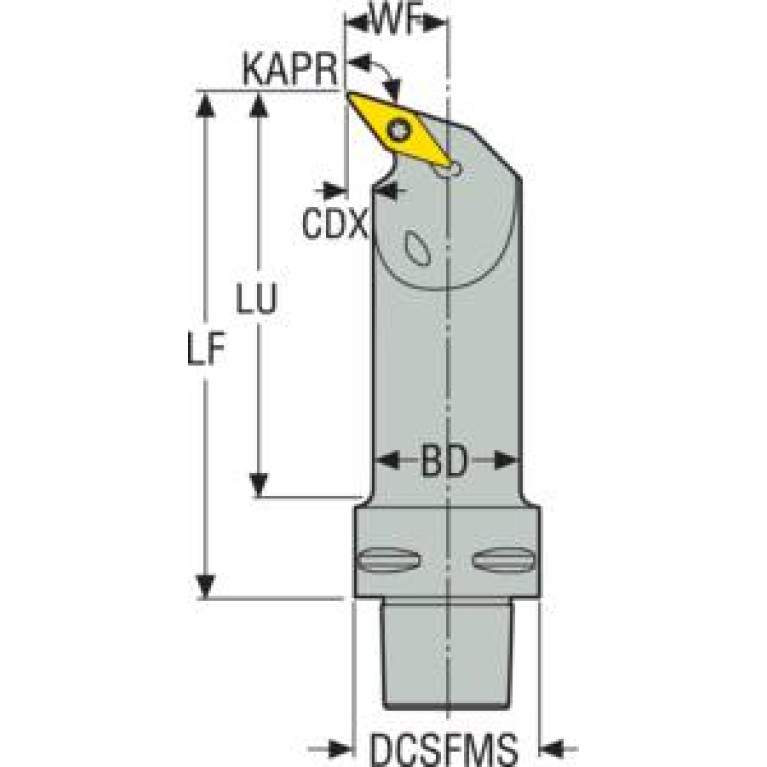

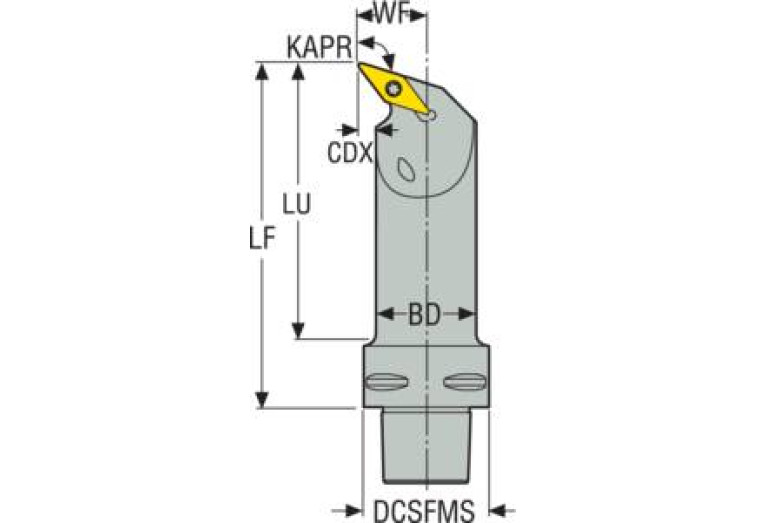

KAPR Tool cutting edge angle
107.5 Degree
LAMS Inclination angle
-5 Degree
LF Functional length
80 mm
LH Head length
64 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0300
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03000195
LTA Length tool assembly
80 mm
MIID Master insert identification
VBGT110201-F1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
C3-SVQBR-15080-11
WF Functional width
15 mm
Working process
No working processes available
WT Weight of item
0.3 kg
