BD1195801031400

Артикул: 02522857

В наличии

В корзину

Описание

Характеристики

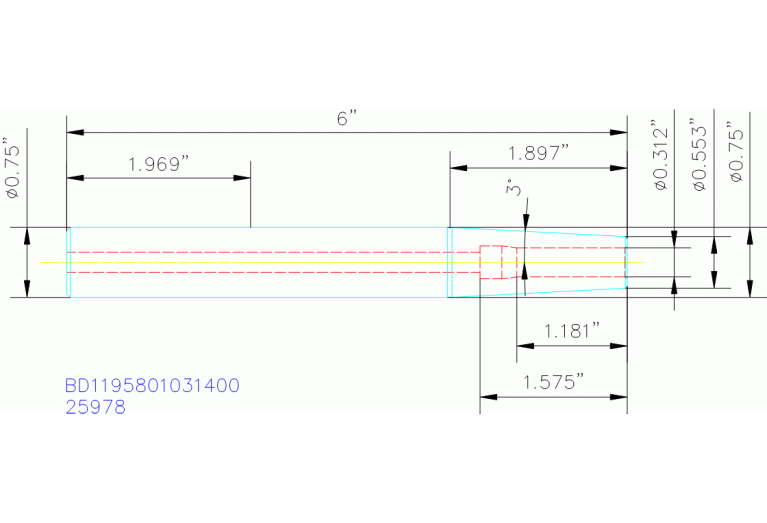

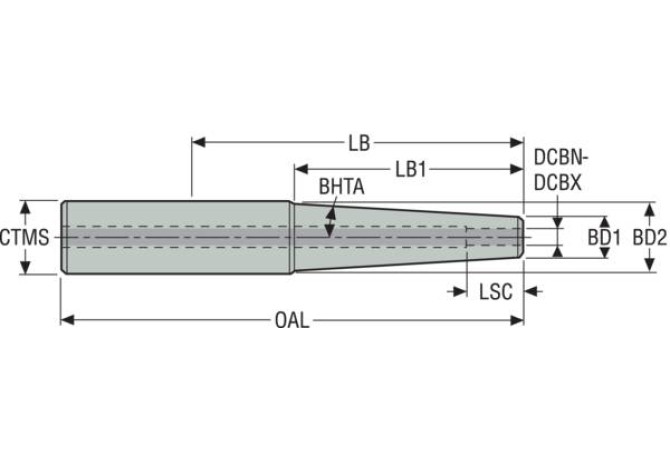

BD Body diameter

14 mm

BD Body diameter 2

19.05 mm

BLQ Balance quality code

COMPC Company code

SO - SECO Tools

DCONWS Diameter

9.525 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

FamilyProducts

BD1195801031400

HAND Cutting direction

N - Neutral

ID Technical product number

02522857

Interface codes

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

101.6 mm

LB Length 2

48.18 mm

LOC-01 DCONWS Diameter

9.525 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LPR Protruding length

101.6 mm

LSCX Clamping length maximum

30 mm

Name Identifying order number

BD1195801031400

OAL Overall length

152.4 mm

TA Taper angle

3 Degree

WT Weight of item

0.29 kg
