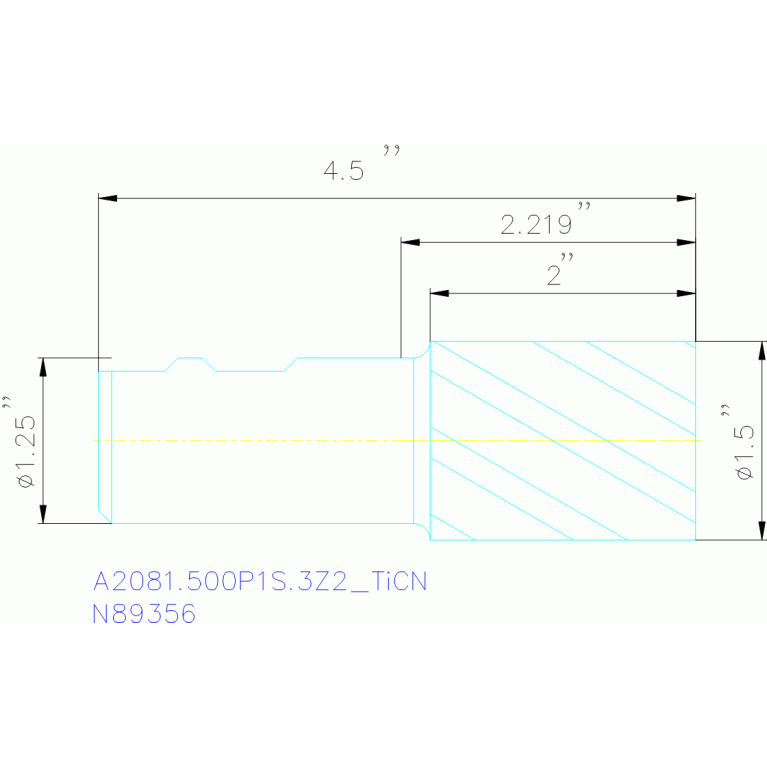

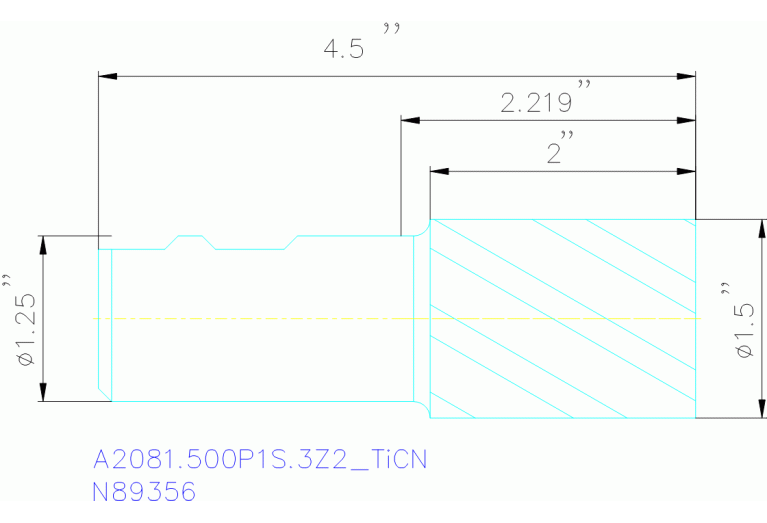

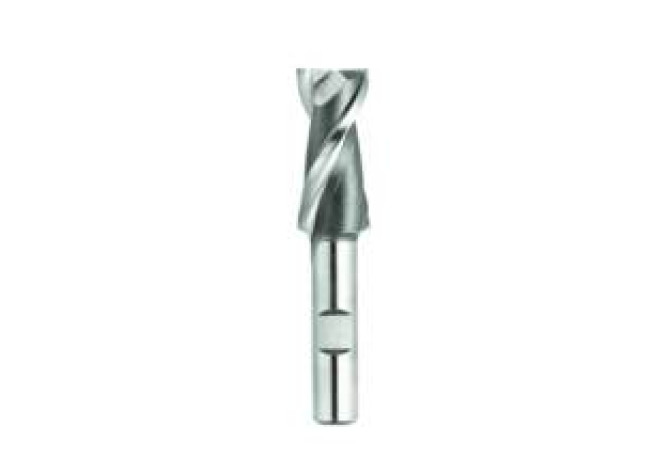

A2081.500P1S.3Z2 TICN

Артикул: 17016863

В наличии

В корзину

Описание

Характеристики

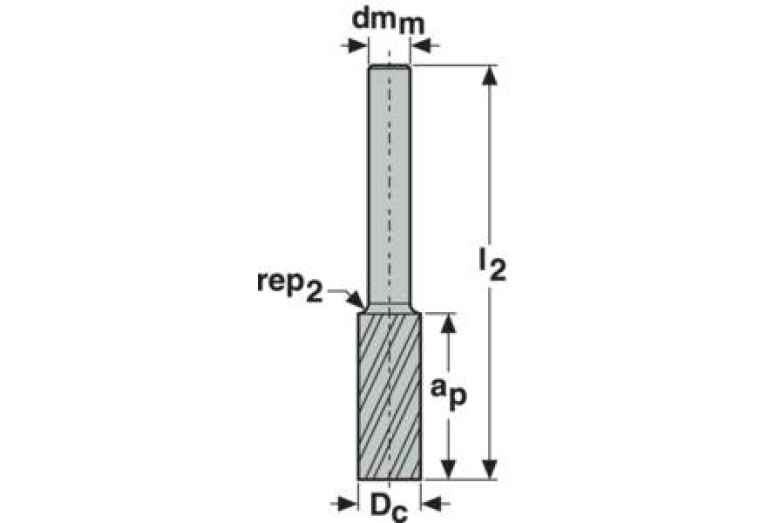

APMX Depth of cut maximum

50.8 mm

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

38.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL12501025

F71 Number of corner designs

FamilyProducts

A2081.500P1S.3Z2 TICN

FHA Flute helix angle

37 Degree

FHH Flute helix hand

R - Hand of helix right

GAMF Rake angle radial

37 Degree

GAMP Rake angle axial

12 Degree

GRDMFG Grade manufacturers designation

TICN

HAND Cutting direction

R - Right

ID Technical product number

17016863

Interface codes

J6 /

ISYC Subclass

303-02 - Centre cutting end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

1250

LOC-03 DCONMS Diameter

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12501025

LS Shank length

57.94 mm

Name Identifying order number

A2081.500P1S.3Z2 TICN

NameAnsi Identifying order number inch alternative

A208-1.500-P1-S.3-Z2 TICN

OAL Overall length

114.3 mm

Working process

No working processes available

WT Weight of item

0.7 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
