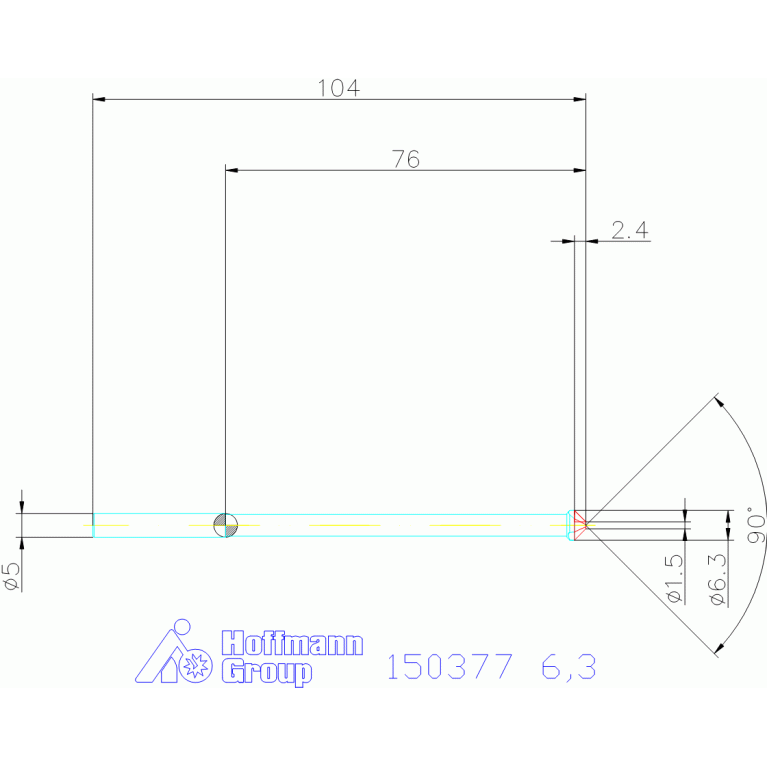

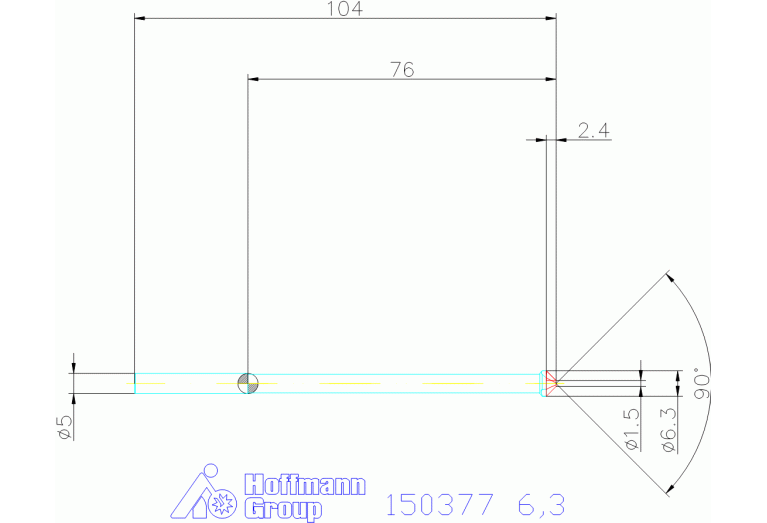

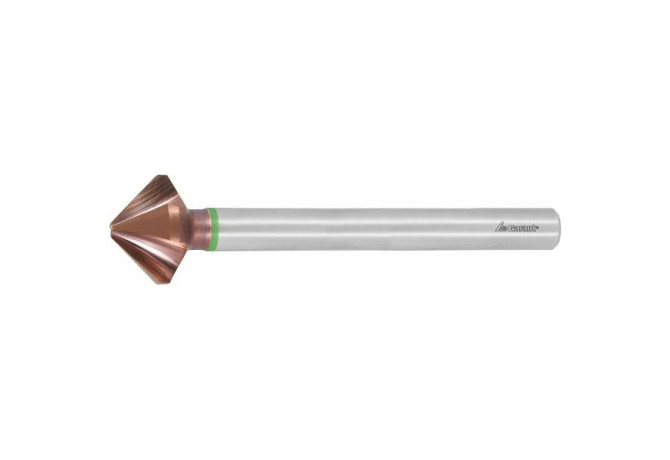

Главная Каталог продукции Toolunited 10 302-05 - Stepped countersinking tool / tapered countersinking tool 150377 6,3

150377 6,3

Артикул: 150377 6,3

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

1.5 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

6.3 mm

DIN

ZYL00500115

FamilyProducts

High-precision countersink, long

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GPP Guide pilot

0 - Without pilot

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-05 - Stepped countersinking tool / tapered countersinking tool

LCF Length chip flute

3.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00500115

LPR Protruding length

76 mm

LS Shank length

97 mm

LU Usable length

2.4 mm

Name Identifying order number

150377 6,3

NOF Flute count

OAL Overall length

104 mm

PHD Premachined hole diameter

1.5 mm

SIG Point angle 1st step

90 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

BPB - Drilling of profiles

WT Weight of item

0.016 kg
