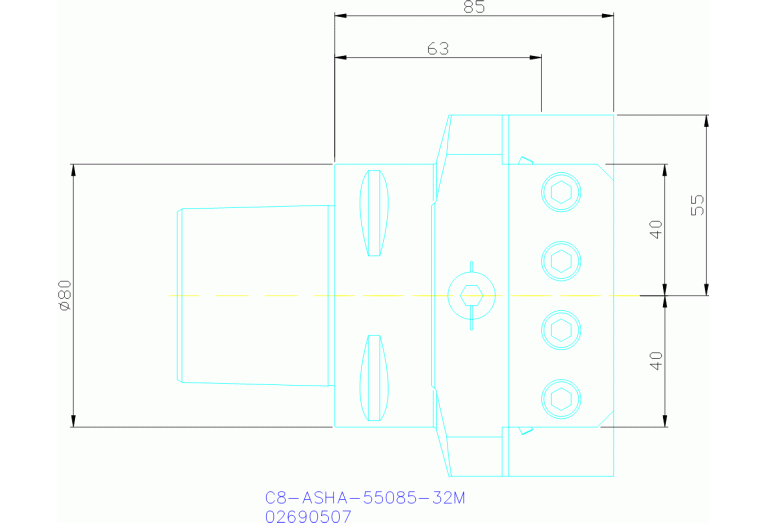

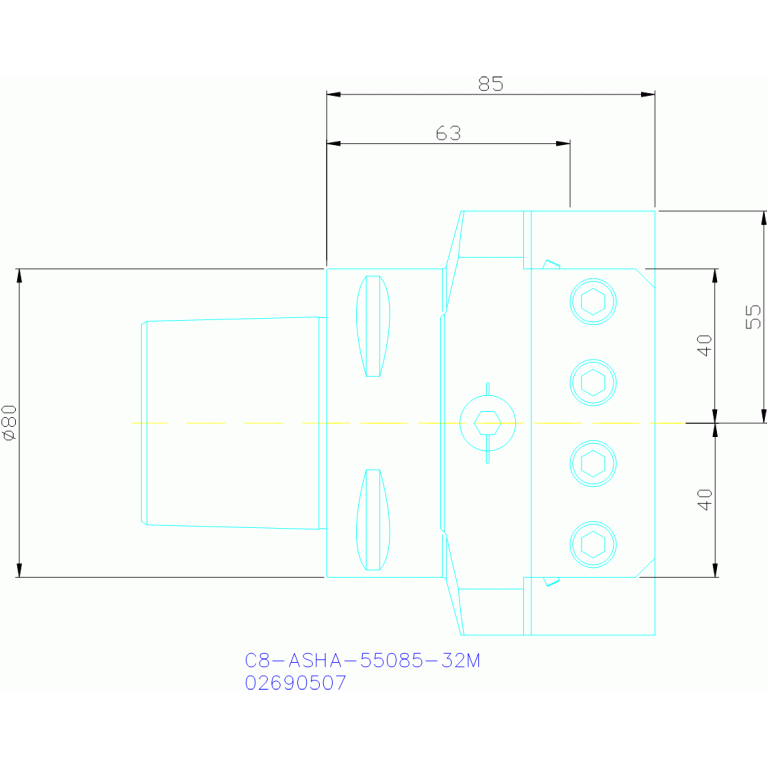

C8-ASHA-55085-32M

Артикул: 02690507

В наличии

В корзину

Описание

Характеристики

BD Body diameter

142 mm

COMPC Company code

SO - SECO Tools

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

DF Flange diameter

80 mm

DIN

CCS08000185

FamilyProducts

C8-ASHA-55085-32M

HF Functional height

32 mm

ID Technical product number

02690507

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LF Functional length

55 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0800

LOC-03 DCONMS Diameter

80 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS08000185

LPR Protruding length

85 mm

Name Identifying order number

C8-ASHA-55085-32M

OAW Overall width

100 mm

RADH Radial height

55 mm

RADW Radial width

55 mm

WF Functional width

55 mm

WT Weight of item

5 kg
