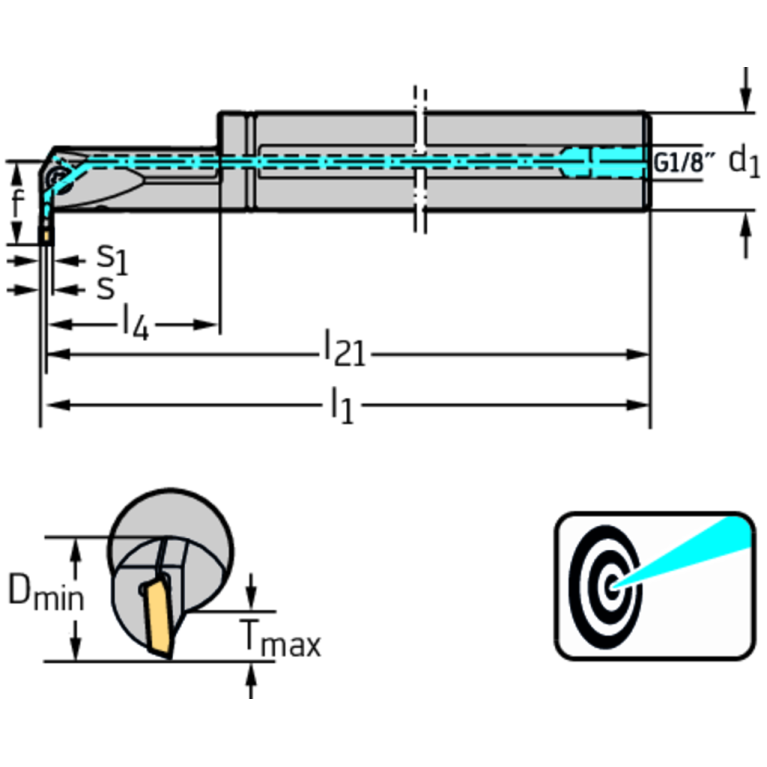

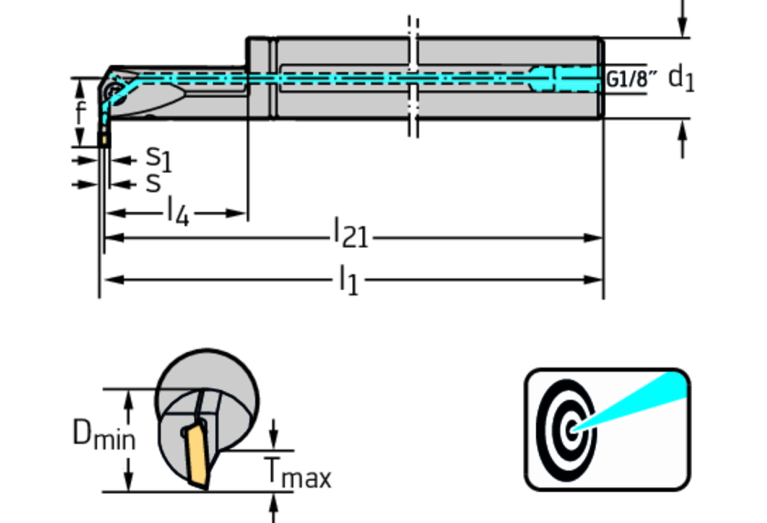

G1221-20QL-3T06-GX09-P

Артикул: 7106118

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

6 mm

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CW Cutting width

2.5 mm

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02001115

DIN CSW1

W-GX092000***EX**

DMIN Minimum bore diameter

20 mm

FamilyProducts

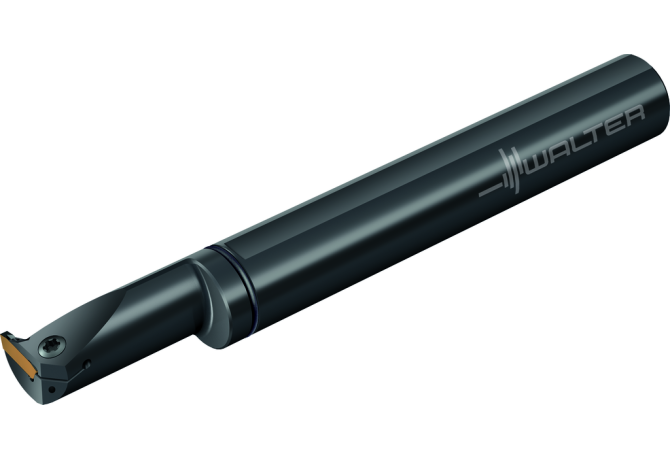

Boring bar – Internal grooving G1221...-P

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

7106118

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

ZYL11G2000$$$$

ISO CSW1

WR$$GX092000***EX**

ISYC Subclass

309-05 - Boring bar for ID grooving

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

179.2 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

19.25 mm

LOC-03 ISO

ZYL11G2000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001115

LPR Protruding length

180.45 mm

MIID Master insert identification

GX09-2

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

G1221-20QL-3T06-GX09-P

OAL Overall length

180.45 mm

THSC Tool holder shape code

G - straight shank design

WF Functional width

16.6 mm

Working process

DDI - Internal turning,DEI - Grooving,DFI - Internal form turning,DIE - Grooving

WT Weight of item

0.359 kg
