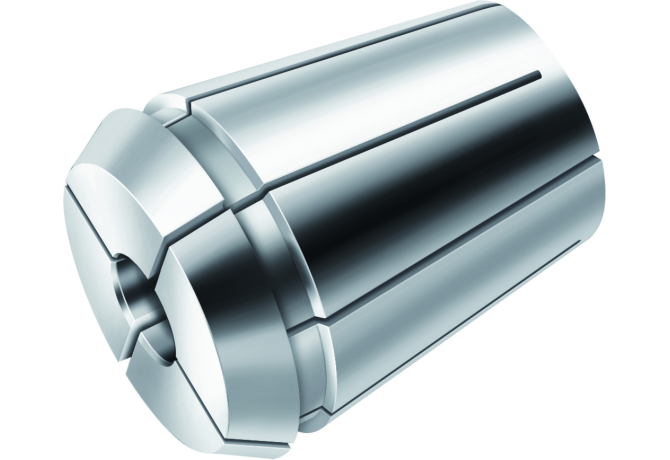

Главная Каталог продукции Toolunited 10 405-01 - Double angle collet C340.U32.143

C340.U32.143

Артикул: 5111833

В наличии

В корзину

Описание

Характеристики

BD Body diameter

33 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

COMPC Company code

W - Walter

CZCWS Size code

0562

Delivery state valid from

12/1/2023

DFC Functional diameter

32 mm

DIN

SZD03200285

FamilyProducts

DIN 6499 ER tapping collets C340

ID Technical product number

5111833

Interface codes

J6 / J61

ISO

SZD02C0320$$$$

ISYC Subclass

405-01 - Double angle collet

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

2 Inch

LOC-01 CZCWS Size code

0562

LOC-01 ISO

ZYL21R5620****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL05622125

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

2 Inch

LOC-02 CZCWS Size code

0562

LOC-02 ISO

ZYL21G1427****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01422105

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

0320

LOC-03 ISO

SZD02C0320$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD03200285

Name Identifying order number

C340.U32.143

OAL Overall length

40.005 mm

WT Weight of item

0.13 kg
