Главная Каталог продукции Toolunited 10 405-01 - Double angle collet 5672S2503

5672S2503

Артикул: 02845297

В наличии

В корзину

Описание

Характеристики

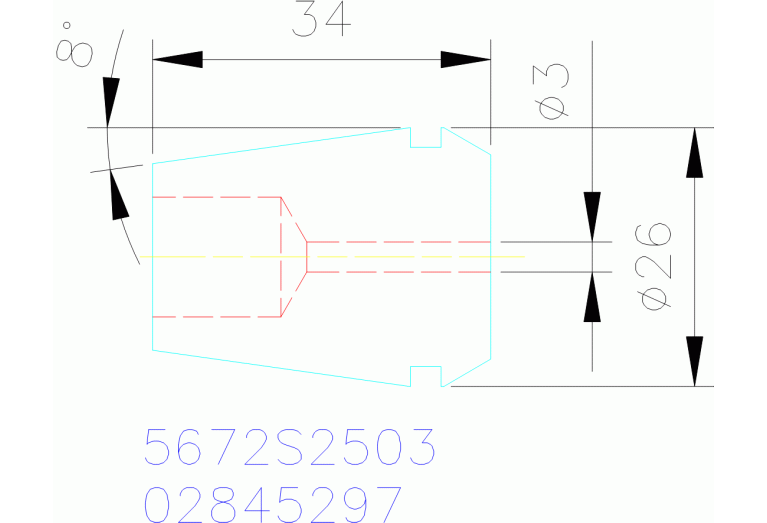

BD Body diameter

26 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0030

DCBN Connection bore diameter minimum

3 mm

DCBX Connection bore diameter maximum

3 mm

Delivery state valid from

3/14/2020

FamilyProducts

5672S2503

ID Technical product number

02845297

Interface codes

/ J61

ISO

SZD15C0250$$$$

ISYC Subclass

405-01 - Double angle collet

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0030

LOC-01 ISO

ZYL01F3000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00300105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 ISO

SZD15C0250$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

5672S2503

OAL Overall length

34 mm

TA Taper angle 1

16 Degree

WT Weight of item

0.08 kg
