Главная Каталог продукции Toolunited 10 405-01 - Double angle collet 393.14-50D220X180

393.14-50D220X180

393.14-50D220X180 393.14-50D220X180 393.14-50D220X180

393.14-50D220X180

SECO Tools
Артикул: 03131696
В наличии
В корзину
Описание
Характеристики

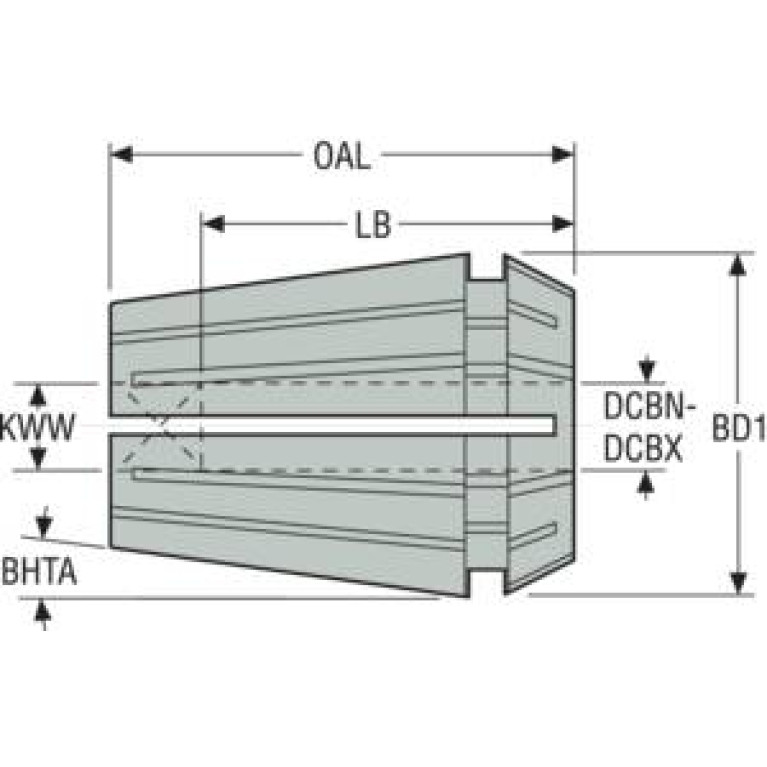

BD Body diameter
50 mm
CCFWS Connection code form
21
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0220
DCBN Connection bore diameter minimum
22 mm
DCBX Connection bore diameter maximum
22 mm
Delivery state valid from
3/14/2020
DIN
SZD05000585
FamilyProducts
393.14-50D220X180
ID Technical product number
03131696
Interface codes
J6 /
ISYC Subclass
405-01 - Double angle collet
LOC-01 CCFWS Connection code form
21
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0220
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02202105
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
SO-SZD050002M0
LOC-03 CCFMS Connection code form
05
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SZD Collet adapter DIN / ISO
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SZD05000585
LSC Clamping length
41 mm
Name Identifying order number
393.14-50D220X180
OAL Overall length
60 mm
TA Taper angle 1
16 Degree
WT Weight of item
0.2 kg
