Главная Каталог продукции Toolunited 10 405-01 - Double angle collet 393.14-50360

393.14-50360

Артикул: 03131700

В наличии

В корзину

Описание

Характеристики

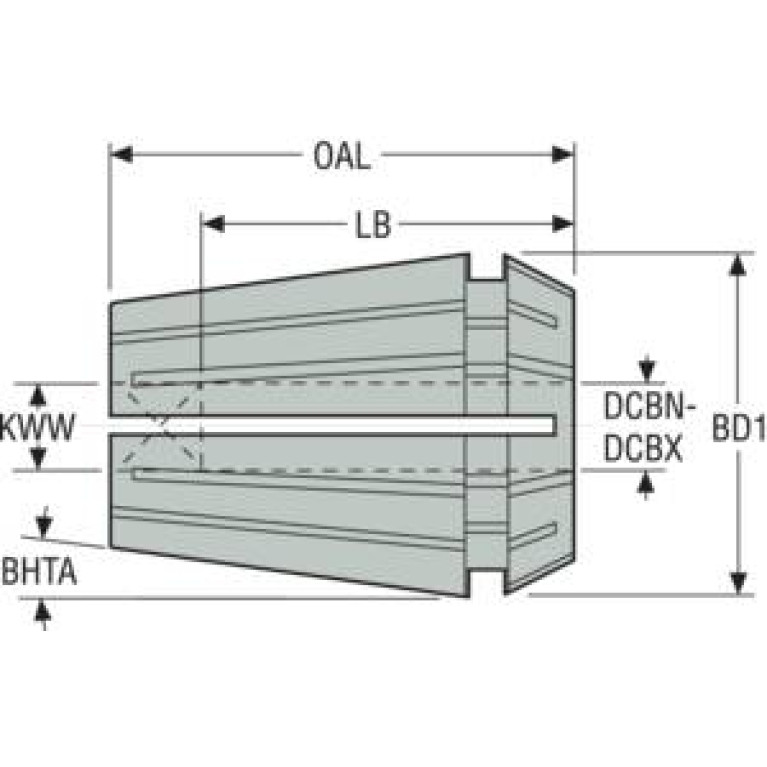

BD Body diameter

50 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0360

DCBN Connection bore diameter minimum

36 mm

DCBX Connection bore diameter maximum

36 mm

Delivery state valid from

3/14/2020

DIN

SZD05000585

FamilyProducts

393.14-50360

ID Technical product number

03131700

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0360

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL03600205

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SO-SZD050002M0

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD05000585

LSC Clamping length

41 mm

LSCX Clamping length maximum

41 mm

Name Identifying order number

393.14-50360

OAL Overall length

60 mm

TA Taper angle 1

16 Degree

WT Weight of item

0.263 kg
