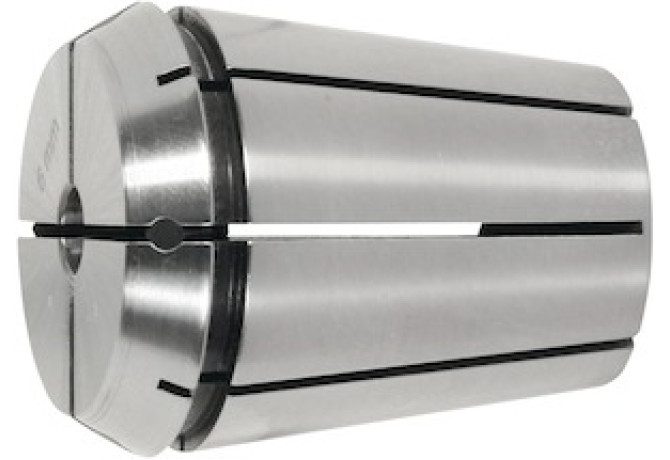

Главная Каталог продукции Toolunited 10 405-01 - Double angle collet 309001 8

309001 8

Артикул: 309001 8

В наличии

В корзину

Описание

Характеристики

BD Body diameter

33 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COLST Collet slot type

3 - Elastic joined discs

COMPC Company code

HOG - Hoffmann Group

CZCWS Connection size code

0080

DCB Connection bore diameter

8 mm

DCBN Connection bore diameter minimum

8 mm

DIN

SZD03200215

FamilyProducts

ER collet with seal

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LCOL Collet length

40 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0080

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00800115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD03200215

Name Identifying order number

309001 8

OAL Overall length

40 mm

SEALP Sealing

0 - Without sealing

STDLET Standard letter to the standard number

STDNO Standard

ISO15488

SZID Size identification

ER32

TA Taper angle 1

16 Degree

TA Taper angle 2

60 Degree

UNNO Unified number

469E
