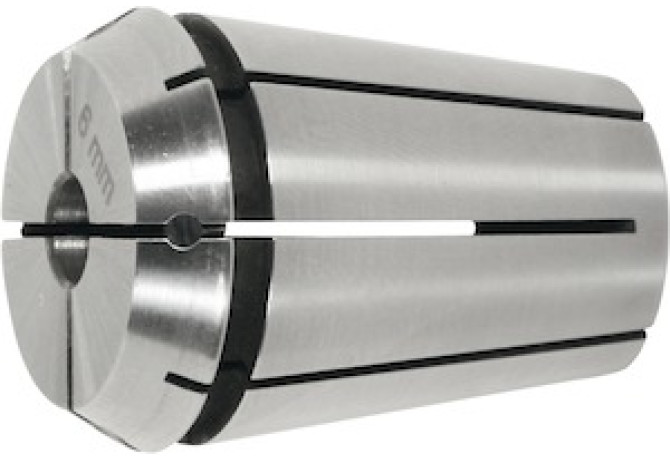

308959 10
308959 10
Артикул:
308959 10
В наличии
Характеристики
BD Body diameter
26 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
COLST Collet slot type
3 - Elastic joined discs
COMPC Company code
HOG - Hoffmann Group
CZCWS Connection size code
0100
DCB Connection bore diameter
10 mm
DCBN Connection bore diameter minimum
10 mm
DIN
SZD02500215
FamilyProducts
ER collet with seal
Interface codes
J6 /
ISYC Subclass
405-01 - Double angle collet
LCOL Collet length
34 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0100
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01000115
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SZD Collet adapter DIN / ISO
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SZD02500215
Name Identifying order number
308959 10
OAL Overall length
34 mm
SEALP Sealing
0 - Without sealing
STDLET Standard letter to the standard number
A
STDNO Standard
ISO15488
SZID Size identification
ER25
TA Taper angle 1
16 Degree
TA Taper angle 2
60 Degree
UNNO Unified number
429E
