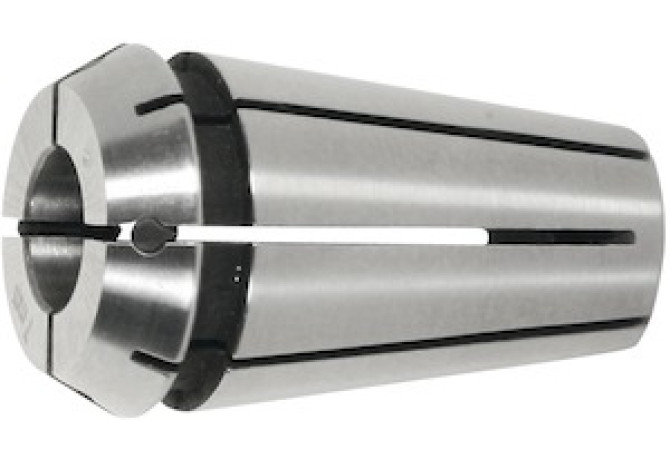

Главная Каталог продукции Toolunited 10 405-01 - Double angle collet 308921 9

308921 9

Артикул: 308921 9

В наличии

В корзину

Описание

Характеристики

BD Body diameter

17 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COLST Collet slot type

3 - Elastic joined discs

COMPC Company code

HOG - Hoffmann Group

CZCWS Connection size code

0090

DCB Connection bore diameter

9 mm

DCBN Connection bore diameter minimum

9 mm

DIN

SZD01600215

FamilyProducts

ER collet with seal

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LCOL Collet length

27.5 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0090

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00900115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD01600215

Name Identifying order number

308921 9

OAL Overall length

27.5 mm

SEALP Sealing

0 - Without sealing

STDLET Standard letter to the standard number

STDNO Standard

ISO15488

SZID Size identification

ER16

TA Taper angle 1

16 Degree

TA Taper angle 2

60 Degree

UNNO Unified number

425E
