Главная Каталог продукции Toolunited 10 401-04 - Reducer, primary design PR.CT.ND20.10.160

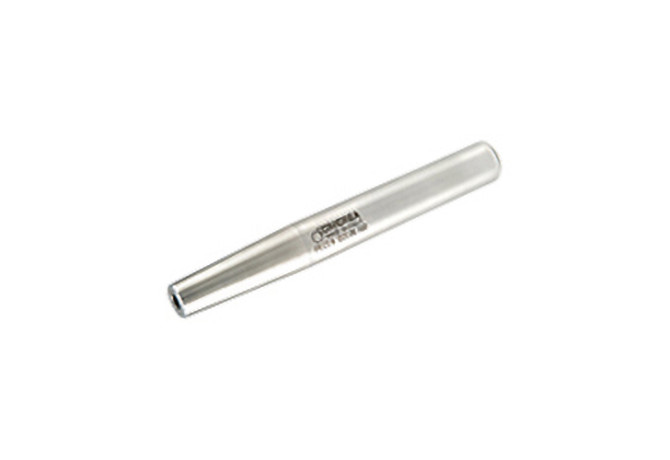

PR.CT.ND20.10.160

PR.CT.ND20.10.160 PR.CT.ND20.10.160 PR.CT.ND20.10.160

PR.CT.ND20.10.160

Ingersoll
Артикул: 3065274
В наличии
В корзину
Описание
Характеристики
BD Body diameter
20 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0100
DCINTF Interference cutting diameter
16 mm
DCONWS Diameter
10 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
ZYL02000115
FamilyProducts
Shrink Fit Extension
HAND Cutting direction
N - Neutral
ID Technical product number
3065274
Interface codes
J6 /
ISYC Subclass
401-04 - Reducer, primary design
LB Body length 1
28 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0100
LOC-01 DCONWS Diameter
10 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01000115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000115
Name Identifying order number
PR.CT.ND20.10.160
OAL Overall length
160 mm
TA Taper angle
4.5 Degree
WT Weight of item
0.21 kg
