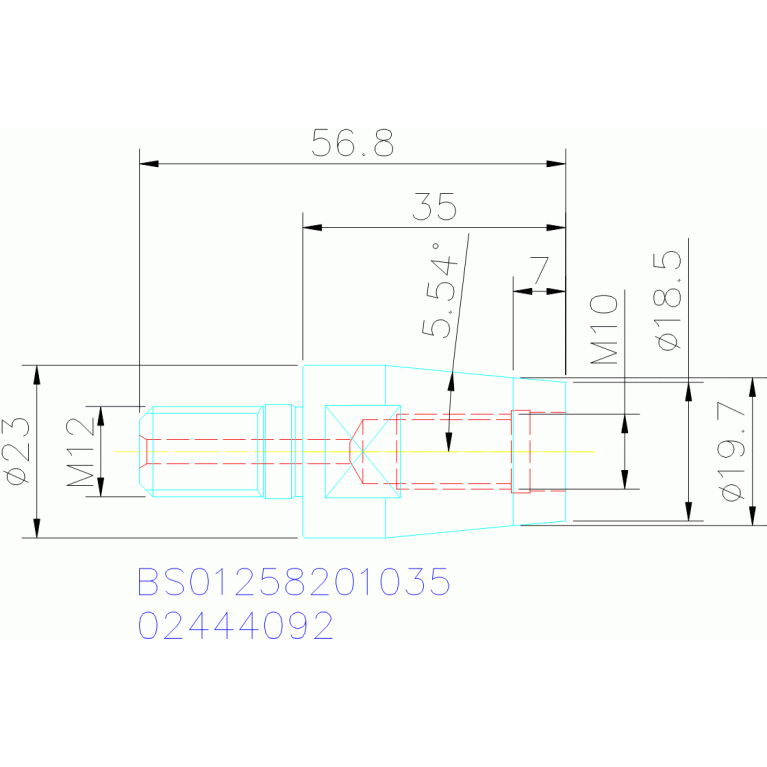

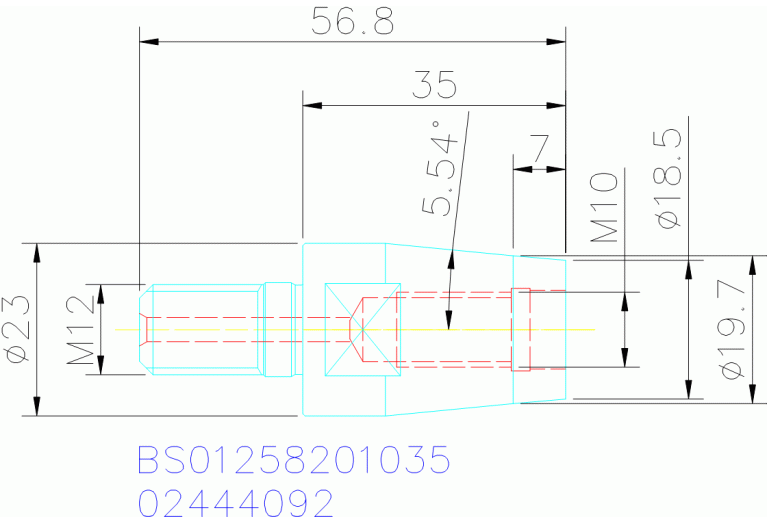

Главная Каталог продукции Toolunited 10 401-04 - Reducer, primary design BS01258201035

BS01258201035

Артикул: 02444092

В наличии

В корзину

Описание

Характеристики

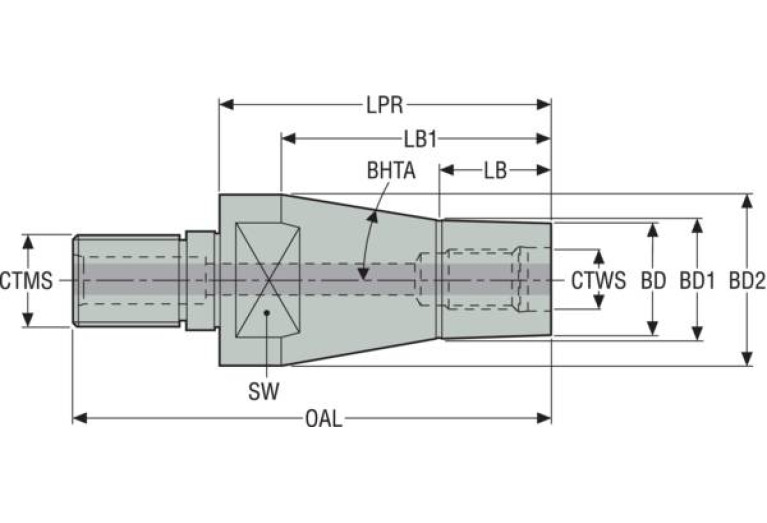

BD Body diameter

18.5 mm

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SCM

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0185

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

FamilyProducts

BS01258201035

HAND Cutting direction

N - Neutral

ID Technical product number

02444092

Interface codes

/ J61

ISO

SCM01G2300$$$$

ISYC Subclass

401-04 - Reducer, primary design

LB Body length 1

24 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SCM

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0185

LOC-01 ISO

SCM01G1850$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SCM01850105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SCM

LOC-03 CZCMS Connection size code

0230

LOC-03 ISO

SCM01G2300$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

35 mm

Name Identifying order number

BS01258201035

OAL Overall length

56.75 mm

TA Taper angle

5.9 Degree

THSZWS Connection thread nominal size workpiece side

M10

WT Weight of item

0.097 kg
