Главная Каталог продукции Toolunited 10 401-03 - Extender T15T15SA-17

T15T15SA-17

Артикул: 4508091

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SAI

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0150

DCP Data chip provision

0 - Without data chip

Delivery state

LL - Stock limited

DF Flange diameter

23.9 mm

DIN

SAI01500105

FamilyProducts

Carbide Extension TS

HAND Cutting direction

R - Right

ID Technical product number

4508091

Interface codes

J6 /

ISYC Subclass

401-03 - Extender

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SAI Screw mounting ISCAR

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0150

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAI01500105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0150

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01500105

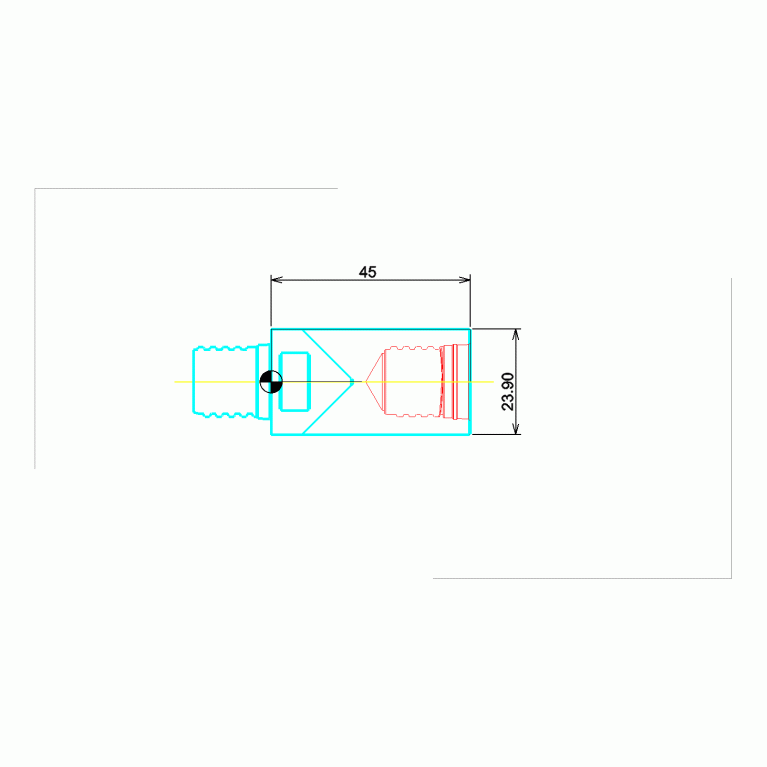

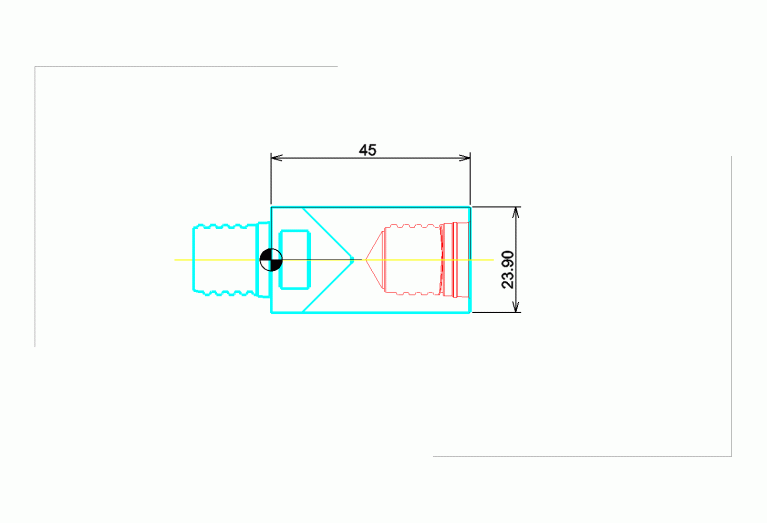

LPR Protruding length

45 mm

Name Identifying order number

T15T15SA-17

OAL Overall length

62.6 mm

WT Weight of item

0.21 kg
