Главная Каталог продукции Toolunited 10 401-03 - Extender BS02058202045

BS02058202045

Артикул: 02928185

В наличии

В корзину

Описание

Характеристики

BD Body diameter

36.5 mm

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SCM

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0365

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

FamilyProducts

BS02058202045

HAND Cutting direction

N - Neutral

ID Technical product number

02928185

Interface codes

/ J61

ISO

SCM01G3650$$$$

ISYC Subclass

401-03 - Extender

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SCM

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0365

LOC-01 ISO

SCM01G3650$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SCM03650105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SCM

LOC-03 CZCMS Connection size code

0365

LOC-03 ISO

SCM01G3650$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

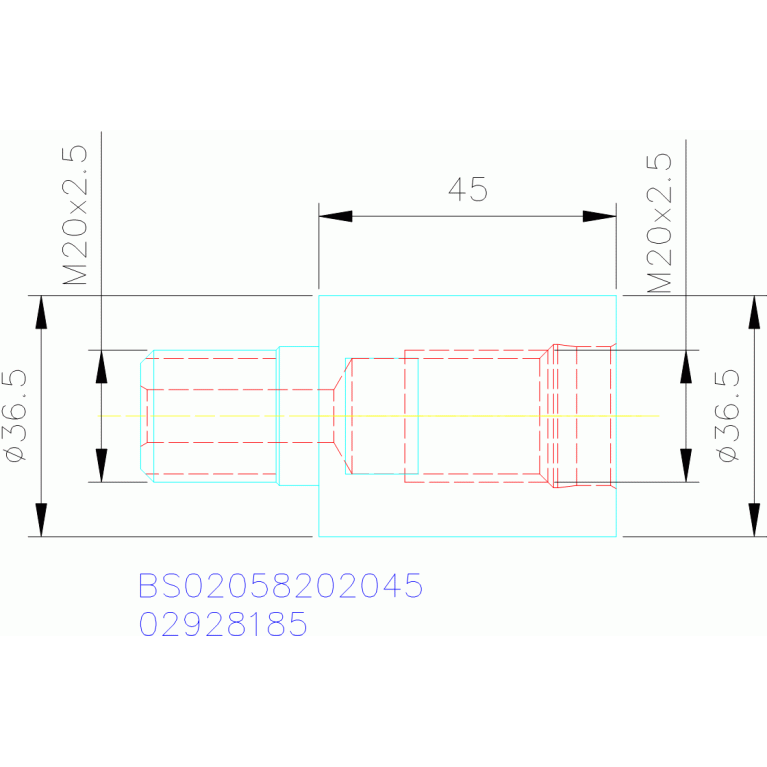

LPR Protruding length

45 mm

Name Identifying order number

BS02058202045

OAL Overall length

72 mm

THSZWS Connection thread nominal size workpiece side

M20

WT Weight of item

0.3 kg
