Главная Каталог продукции Toolunited 10 401-02 - Converter, stationary G2661.16N-26-P

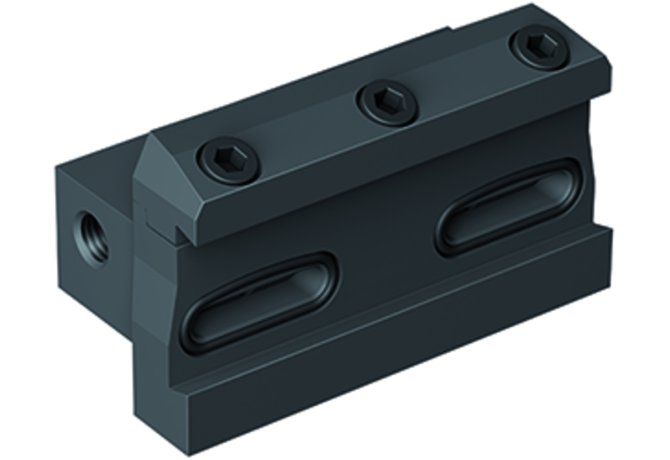

G2661.16N-26-P

G2661.16N-26-P G2661.16N-26-P G2661.16N-26-P

G2661.16N-26-P

Walter
Артикул: 7100190
В наличии
В корзину
Описание
Характеристики
CCFWS Form
01
CCSWS Style
5
CCTWS Type
PMW
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0260
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT16160135
FamilyProducts
Clamping block with internal coolant G2661...-P
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
7100190
Interface codes
J6 / J61
ISO
VKT01B1616$$$$
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
0 Degree
LF Functional length
47.5 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
PMW Prism mounting WOHLHAUPTER
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0260
LOC-01 ISO
PMW01C0260****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMW02600195
LOC-02 CCFWS Form
01
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
PMW Prism mounting WOHLHAUPTER
LOC-02 CCUWS Unit base
9 non-dimensional size with coolant
LOC-02 CZCWS Size code
0260
LOC-02 ISO
PMW01C026L****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
PMW026L0195
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1616
LOC-03 ISO
VKT01B1616$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160135

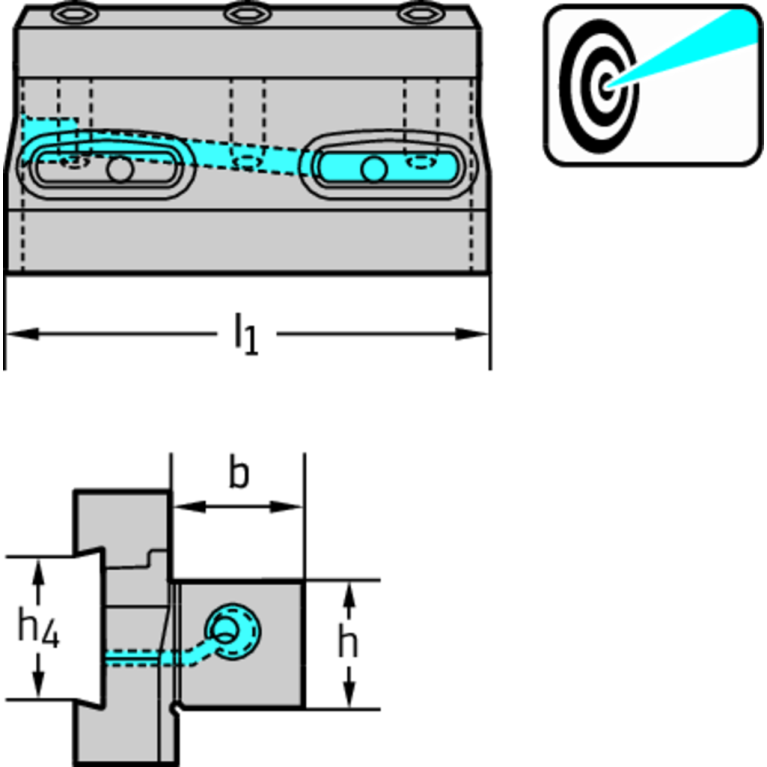

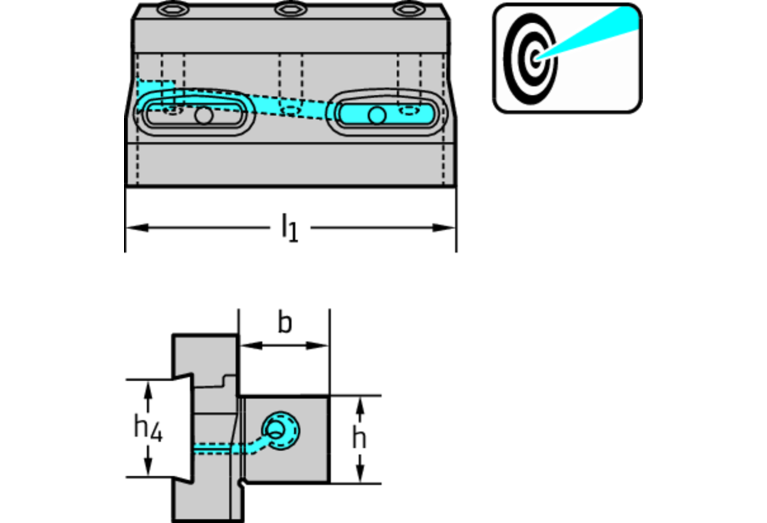

LPR Protruding length
95 mm
Name Identifying order number
G2661.16N-26-P
OAH Overall height
46.578 mm
OAL Overall length
95 mm
OAW Overall width
45.2 mm
RADH Radial height
6.87 mm
WF Functional width
39.7 mm
WT Weight of item
0.979 kg
