Главная Каталог продукции Toolunited 10 401-02 - Converter, stationary A2121-C5-20N-064-P

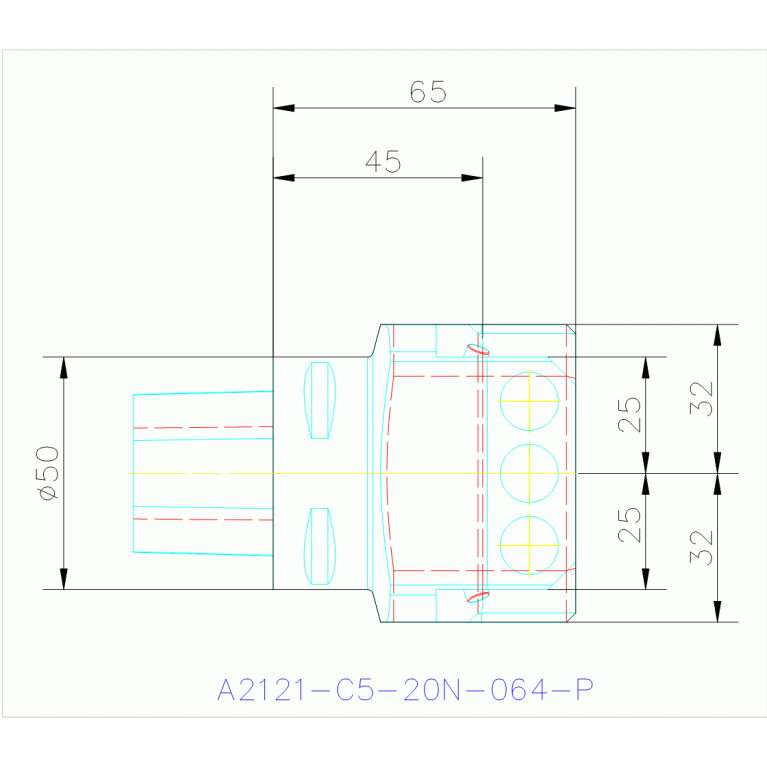

A2121-C5-20N-064-P

Артикул: 7503181

В наличии

В корзину

Описание

Характеристики

BD Body diameter

25 mm

CCFWS Form

CCSWS Style

CCTWS Type

VKT

CCUWS Unit base

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COMPC Company code

W - Walter

CXSC Coolant exit style code

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CZCWS Size code

2012

DCONXWS Connection diameter max

202.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS05000195

FamilyProducts

Walter Capto TM – Radial adaptor A2121-C...-P

HAND Cutting direction

N - Neutral

HF Functional height

20 mm

ID Technical product number

7503181

Interface codes

J6 / J61

ISO

CCS01C0500$$$$

ISYC Subclass

401-02 - Converter, stationary

KAP Kappa

0 Degree

LF Functional length

45 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

VKT Square mounting

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

2012

LOC-01 DCONXWS Connection diameter max

202.2 mm

LOC-01 ISO

VKT01A2012****VKT01A2022****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT20120115VKT20220115

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

CCS01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LPR Protruding length

65 mm

LS Shank length

30 mm

Name Identifying order number

A2121-C5-20N-064-P

OAH Overall height

69 mm

OAL Overall length

95 mm

OAW Overall width

64 mm

RADH Radial height

37 mm

RADW Radial width

32 mm

STDNO Standard

ISO26623-1

WF Functional width

32 mm

WT Weight of item

1.4 kg
