Главная Каталог продукции Toolunited 10 401-02 - Converter, stationary A2120-C6-20R-105-P

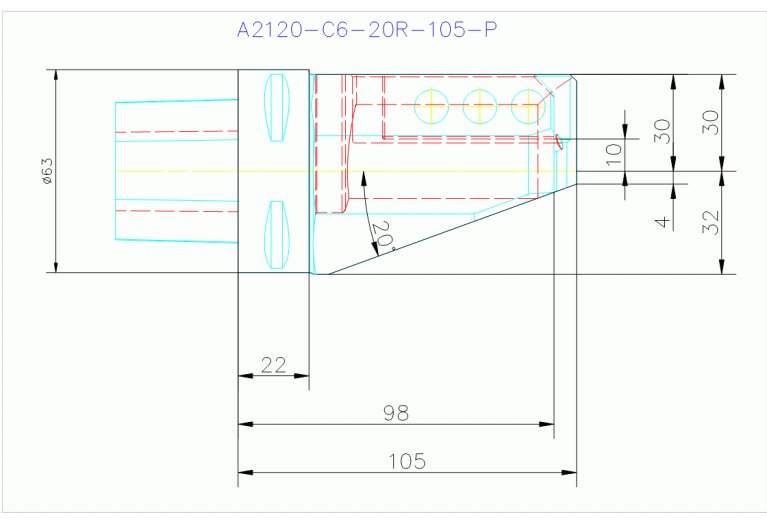

A2120-C6-20R-105-P

A2120-C6-20R-105-P A2120-C6-20R-105-P A2120-C6-20R-105-P A2120-C6-20R-105-P

A2120-C6-20R-105-P

Walter
Артикул: 7503108
В наличии
В корзину
Описание
Характеристики
CCFWS Form
01
CCSWS Style
5
CCTWS Type
VKT
CCUWS Unit base
1
CNSC Coolant entry style code
3 - With Coolant entry, axial concentric and radial
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
2012
DCONXWS Connection diameter max
202.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS06300195
FamilyProducts
Walter Capto TM – Axial adaptor A2120-C...-P
HAND Cutting direction
R - Right
HF Functional height
20 mm
ID Technical product number
7503108
Interface codes
J6 / J61
ISO
CCS01C0630$$$$
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
0 Degree
LB Body length 1
83 mm
LF Functional length
98 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
VKT Square mounting
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
2012
LOC-01 DCONXWS Connection diameter max
202.2 mm
LOC-01 ISO
VKT01A2012****VKT01A2022****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
VKT20120115VKT20220115
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR Protruding length
105 mm
LS Shank length
38 mm
Name Identifying order number
A2120-C6-20R-105-P
OAH Overall height
69 mm
OAL Overall length
143 mm
OAW Overall width
62 mm
RADH Radial height
37 mm
RADW Radial width
30 mm
STDNO Standard
ISO26623-1
WF Functional width
10 mm
WT Weight of item
2.3 kg
