Главная Каталог продукции Toolunited 10 401-02 - Converter, stationary A2110-V30T-32R-080-P

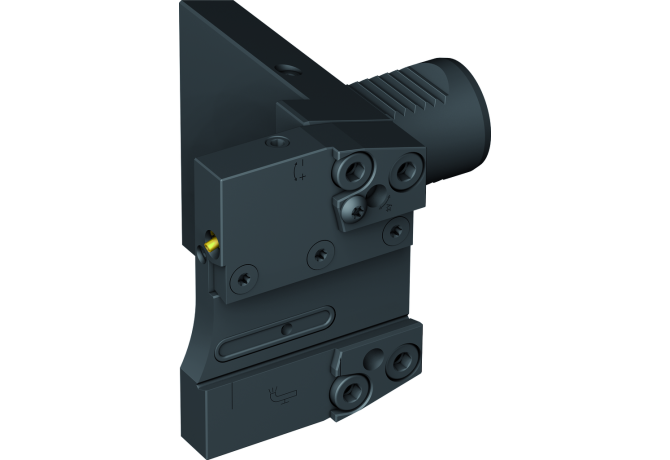

A2110-V30T-32R-080-P

A2110-V30T-32R-080-P A2110-V30T-32R-080-P A2110-V30T-32R-080-P

A2110-V30T-32R-080-P

Walter
Артикул: 7616147
В наличии
В корзину
Описание
Характеристики
CCFWS Form
01
CCSWS Style
5
CCTWS Type
PMW
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0320
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYV03000195
FamilyProducts
VDI adaptor – parting blades A2110-V...-P
HAND Cutting direction
R - Right
ID Technical product number
7616147
Interface codes
J6 / J61
ISO
ZYV01C0300$$$$
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
0 Degree
LB Body length 1
51.5 mm
LF Functional length
80 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
PMW Prism mounting WOHLHAUPTER
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0320
LOC-01 ISO
PMW01C0320****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMW03200195
LOC-02 CCFWS Form
01
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
PMW Prism mounting WOHLHAUPTER
LOC-02 CCUWS Unit base
9 non-dimensional size with coolant
LOC-02 CZCWS Size code
0320
LOC-02 ISO
PMW01C032R****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
PMW032R0195
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0300
LOC-03 DCONMS Diameter
30 mm
LOC-03 ISO
ZYV01C0300$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV03000195
LPR Protruding length
80 mm
Name Identifying order number
A2110-V30T-32R-080-P
OAH Overall height
100 mm
OAL Overall length
135 mm
OAW Overall width
101.5 mm
WF Functional width
58 mm
WT Weight of item
2.32 kg
