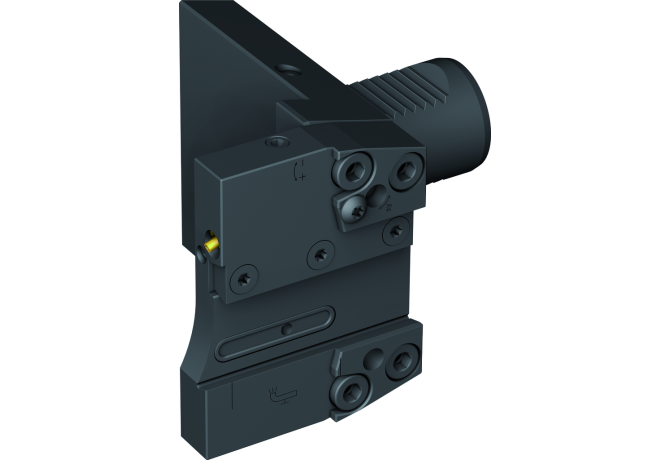

Главная Каталог продукции Toolunited 10 401-02 - Converter, stationary A2110-V25T-26R-083-P

A2110-V25T-26R-083-P

A2110-V25T-26R-083-P A2110-V25T-26R-083-P A2110-V25T-26R-083-P

A2110-V25T-26R-083-P

Walter
Артикул: 7616149
В наличии
В корзину
Описание
Характеристики
CCFWS Form
01
CCSWS Style
5
CCTWS Type
PMW
CCUWS Unit base
8
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Size code
0260
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYV02500185
FamilyProducts
VDI adaptor – parting blades A2110-V...-P
HAND Cutting direction
R - Right
ID Technical product number
7616149
Interface codes
J6 / J61
ISO
ZYV01C0250$$$$
ISYC Subclass
401-02 - Converter, stationary
KAP Kappa
0 Degree
LB Body length 1
49.5 mm
LF Functional length
83 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
PMW Prism mounting WOHLHAUPTER
LOC-01 CCUWS Unit base
8 non-dimensional size
LOC-01 CZCWS Size code
0260
LOC-01 ISO
PMW01C0260****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
PMW02600185
LOC-02 CCFWS Form
01
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
PMW Prism mounting WOHLHAUPTER
LOC-02 CCUWS Unit base
8 non-dimensional size
LOC-02 CZCWS Size code
0260
LOC-02 ISO
PMW01C026R****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
PMW026R0185
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 ISO
ZYV01C0250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYV02500185
LPR Protruding length
83 mm
Name Identifying order number
A2110-V25T-26R-083-P
OAH Overall height
74 mm
OAL Overall length
131 mm
OAW Overall width
80.5 mm
WF Functional width
38.5 mm
WT Weight of item
1.2 kg
