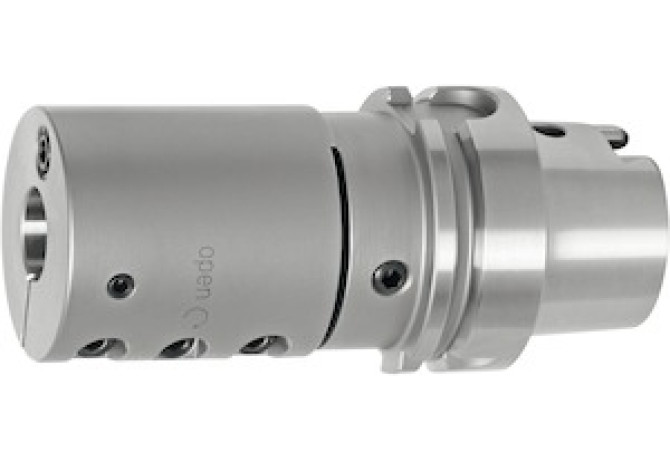

Главная Каталог продукции Toolunited 10 401-02 - Converter, stationary 318831 25

318831 25

Артикул: 318831 25

В наличии

В корзину

Описание

Характеристики

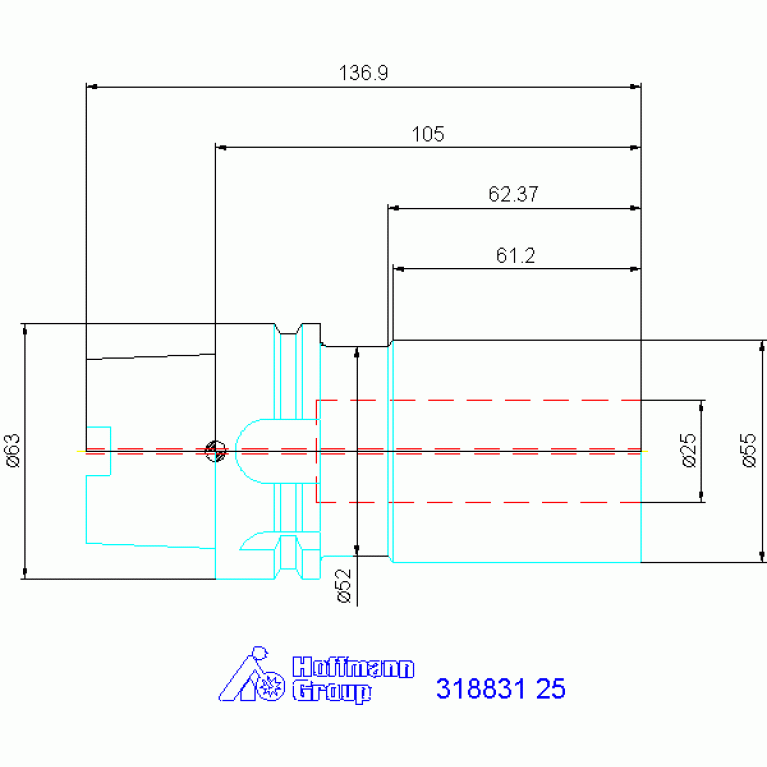

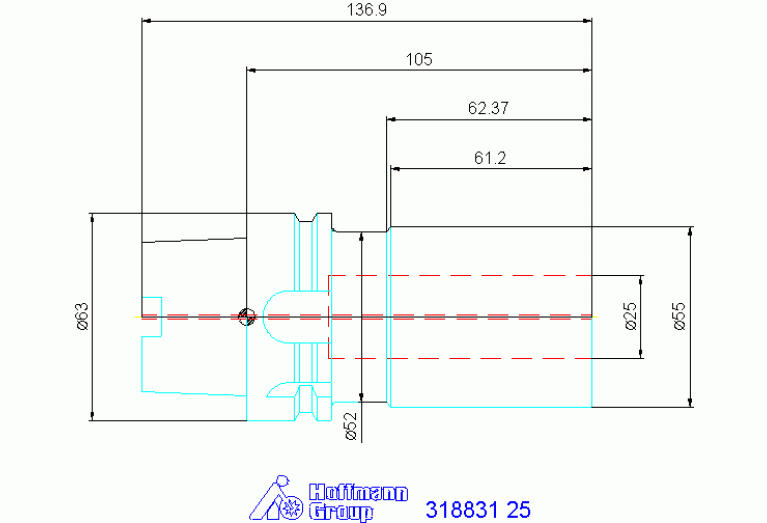

BD Body diameter

55 mm

BD Body diameter 2

52 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0250

DCONWS Diameter

25 mm

DCP Data chip provision

0 - Without data chip

DF Flange diameter

63 mm

DIN

HSK06300795

FamilyProducts

Boring bar holder slotted

HAND Cutting direction

N - Neutral

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LB Body length 1

61.2 mm

LB Length 2

17.8 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0250

LOC-01 DCONWS Diameter

25 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02502215

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300795

LPR Protruding length

105 mm

LSCX Clamping length maximum

80 mm

Name Identifying order number

318831 25

OAL Overall length

136.9 mm

WT Weight of item

1.658 kg
