Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric PSC 80 CT18.120

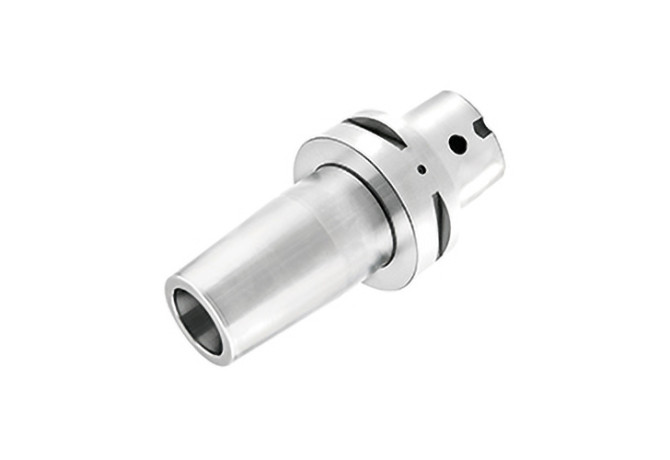

PSC 80 CT18.120

PSC 80 CT18.120 PSC 80 CT18.120 PSC 80 CT18.120

PSC 80 CT18.120

Ingersoll
Артикул: 3062894
В наличии
В корзину
Описание
Характеристики
BD Body diameter
42 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0180
DCINTF Interference cutting diameter
33 mm
DCONWS Diameter
18 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
CCS08000195
FamilyProducts
PSC-80 Shrink Fit Chucks
HAND Cutting direction
N - Neutral
ID Technical product number
3062894
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0180
LOC-01 DCONWS Diameter
18 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01800115
LOC-02 DCONWS Diameter
18 mm
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
IL-K-1220
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0800
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000195
LPR Protruding length
120 mm
LSCN Clamping length minimum
49 mm
LSCX Clamping length maximum
49 mm
Name Identifying order number
PSC 80 CT18.120
OAL Overall length
168 mm
TA Taper angle
4.5 Degree
WT Weight of item
2.8 kg
