Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric MM S-A-H050-ER32-T12-H

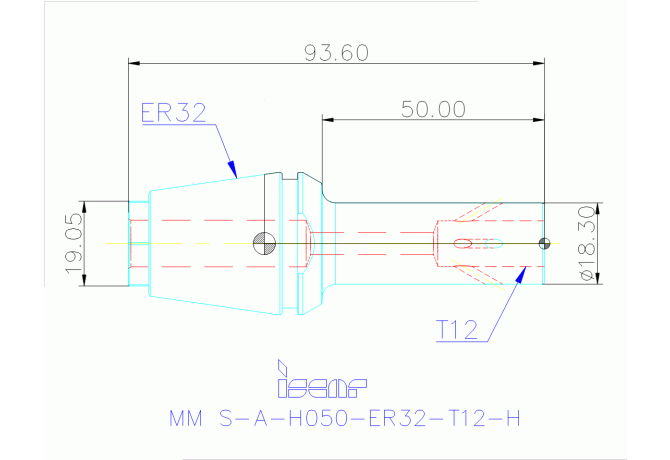

MM S-A-H050-ER32-T12-H

Артикул: 3105842

В наличии

В корзину

Описание

Характеристики

BD Body diameter

18.3 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SAI

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0120

DCP Data chip provision

0 - Without data chip

DIN

SZD00000295

FamilyProducts

Shanks for MULTI-MASTER Solid Carbide Heads with an ER Collet Adaptation and Coolant Holes

ID Technical product number

3105842

Interface codes

J6 / J61

ISO

SZD02C0000h$06

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

50 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SAI Screw mounting ISCAR

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0120

LOC-01 ISO

SAI01C0120$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAI01200195

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0000

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

SZD02C0000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD00000295

Name Identifying order number

MM S-A-H050-ER32-T12-H

OAL Overall length

94.6 mm

TCDCON ISO-tolerance class connection bore diameter

TCDCONMS ISO-tolerance class shank diameter

THSZWS Connection thread nominal size workpiece side

T12

WT Weight of item

0.22 kg
