Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric HSK-A100 CT25.120

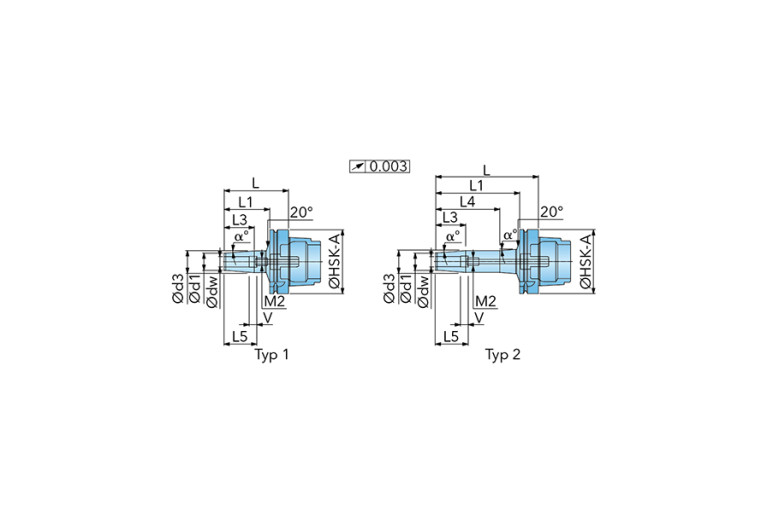

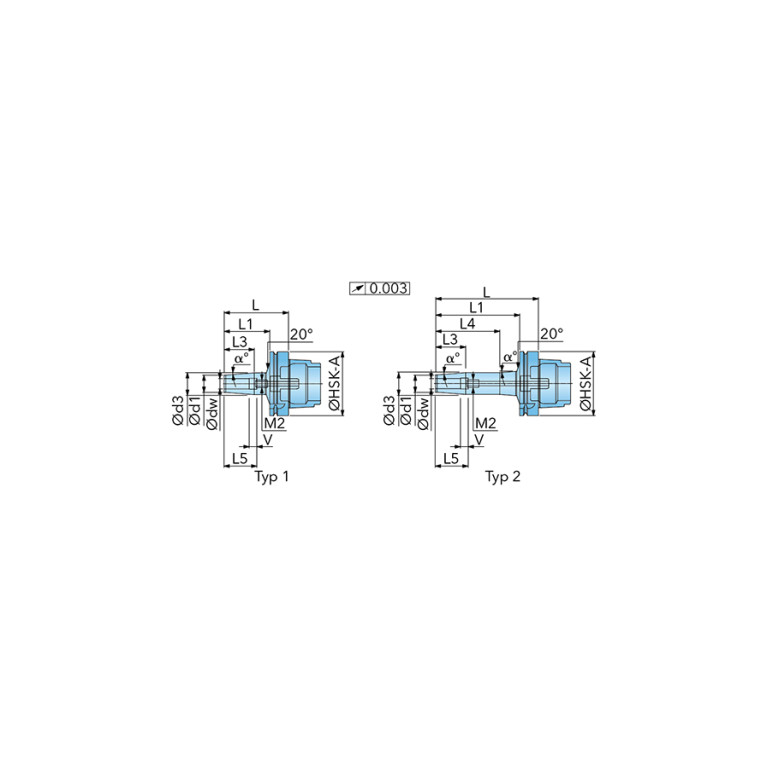

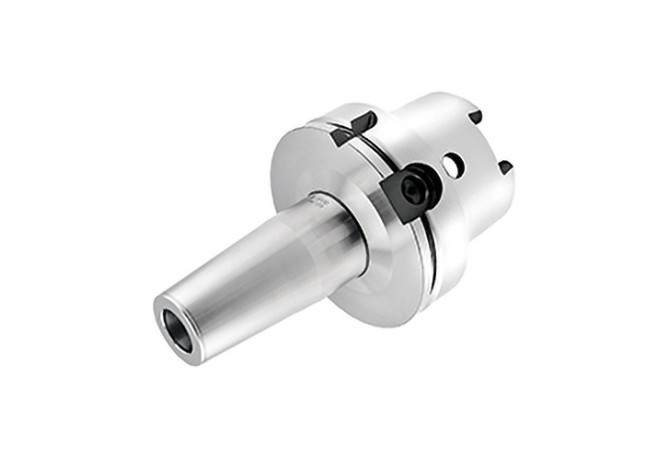

HSK-A100 CT25.120

HSK-A100 CT25.120 HSK-A100 CT25.120 HSK-A100 CT25.120

HSK-A100 CT25.120

Ingersoll
Артикул: 3062788
В наличии
В корзину
Описание
Характеристики
BD Body diameter
53 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0250
DCINTF Interference cutting diameter
44 mm
DCONWS Diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
HSK10000195
FamilyProducts
HSK-A100 Shrink Fit Chucks
HAND Cutting direction
N - Neutral
ID Technical product number
3062788
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0250
LOC-01 DCONWS Diameter
25 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02500115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
120 mm
LSCN Clamping length minimum
57 mm
LSCX Clamping length maximum
57 mm
Name Identifying order number
HSK-A100 CT25.120
OAL Overall length
170 mm
TA Taper angle
4.5 Degree
WT Weight of item
3.1 kg
