Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric HSK-A100 CT16.100

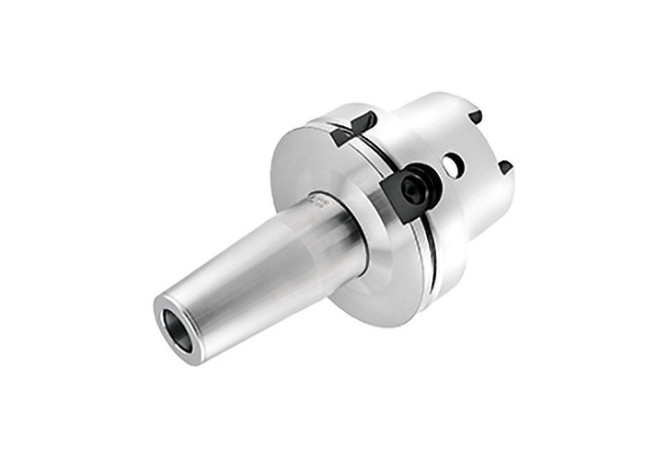

HSK-A100 CT16.100

HSK-A100 CT16.100 HSK-A100 CT16.100 HSK-A100 CT16.100

HSK-A100 CT16.100

Ingersoll
Артикул: 3062725
В наличии
В корзину
Описание
Характеристики
BD Body diameter
34 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCINTF Interference cutting diameter
27 mm
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
HSK10000195
FamilyProducts
HSK-A100 Shrink Fit Chucks
HAND Cutting direction
N - Neutral
ID Technical product number
3062725
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01600115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
100 mm
LSCN Clamping length minimum
49 mm
LSCX Clamping length maximum
49 mm
Name Identifying order number
HSK-A100 CT16.100
OAL Overall length
150 mm
TA Taper angle
4.5 Degree
WT Weight of item
2.3 kg
