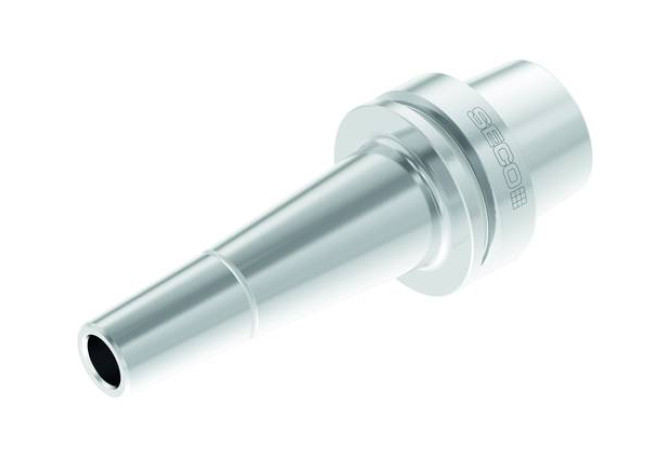

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric E934258010460

E934258010460

E934258010460 E934258010460 E934258010460 E934258010460

E934258010460

Seco
Артикул: 02418320
В наличии
В корзину
Описание
Характеристики
BD Body diameter
10 mm
BD Body diameter 2
14.2 mm
BLQ Balance quality code
G2.5
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
0400
DCONWS Diameter
4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
HSK04000385
FamilyProducts
E934258010460
HAND Cutting direction
N - Neutral
ID Technical product number
02418320
Interface codes
J6 / J61
ISO
HSK03C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
40 mm
LF Functional length
60 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0400
LOC-01 DCONWS Diameter
4 mm
LOC-01 ISO
ZYL01F4000****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL04000105
LOC-03 CCFMS Connection code form
03
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
HSK03C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK04000385
LPR Protruding length
60 mm
LSCX Clamping length maximum
15 mm
Name Identifying order number
E934258010460
OAL Overall length
80 mm
TA Taper angle
3 Degree
WT Weight of item
0.232 kg
