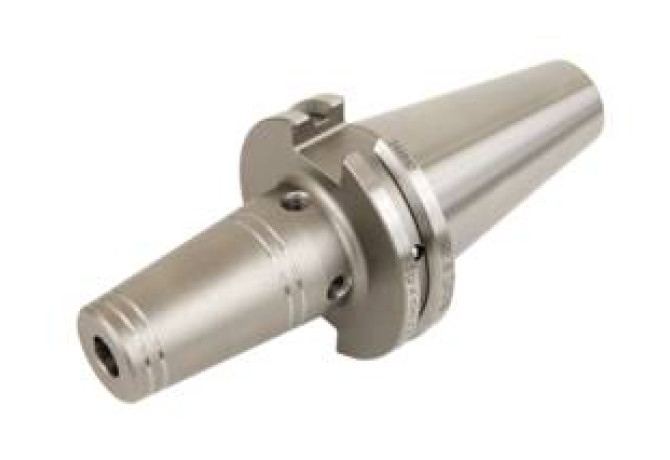

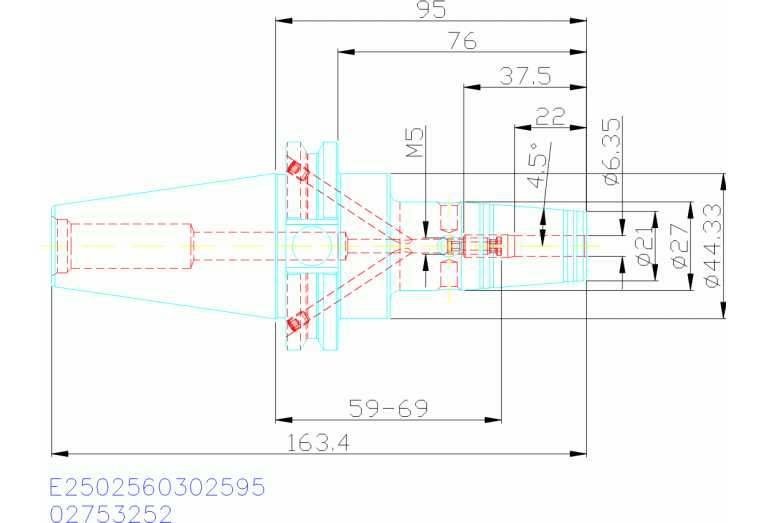

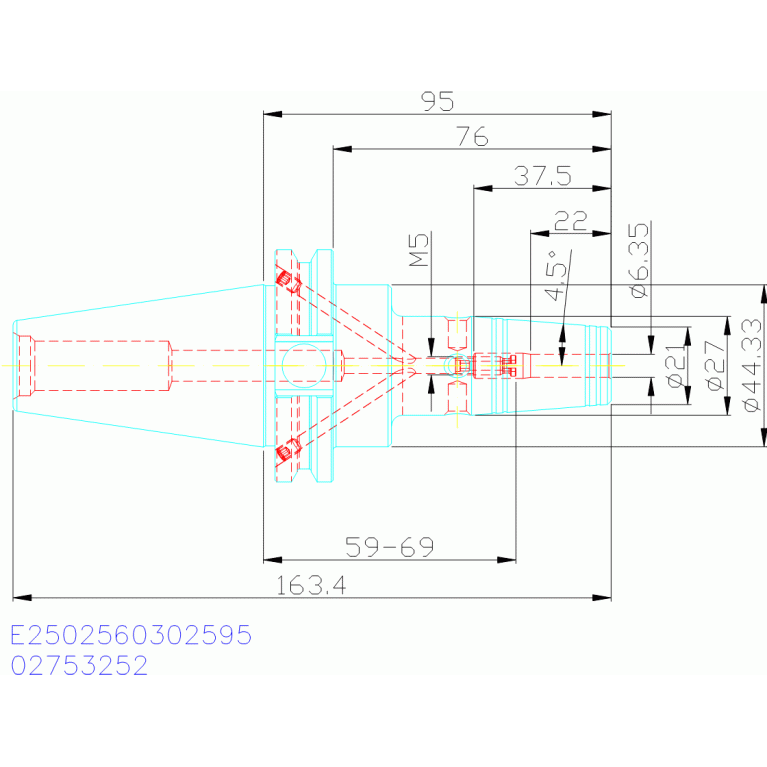

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric E2502560302595

E2502560302595

E2502560302595

Seco

Артикул: 02753252

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

2 - Axial adjustment possible

BD Body diameter

27 mm

BLQ Balance quality code

G2.5

CCFWS Connection code form

01

CCSWS Connection code style

5

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

1

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0250

DCINTF Interference cutting diameter

21 mm

DCONWS Diameter

6.35 mm

DCP Data chip provision

1 - With data chip

Delivery state valid from

3/14/2020

DIN

SKG04003795

FamilyProducts

E2502560302595

HAND Cutting direction

N - Neutral

ID Technical product number

02753252

Interface codes

J6 / J61

ISO

SKG37C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

75.9 mm

LF Functional length

73 mm

LOC-01 CCFWS Connection code form

01

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0250

LOC-01 DCONWS Diameter

6.35 mm

LOC-01 ISO

ZYL01G2500****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02500115

LOC-03 CCFMS Connection code form

37

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

SKG37C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04003795

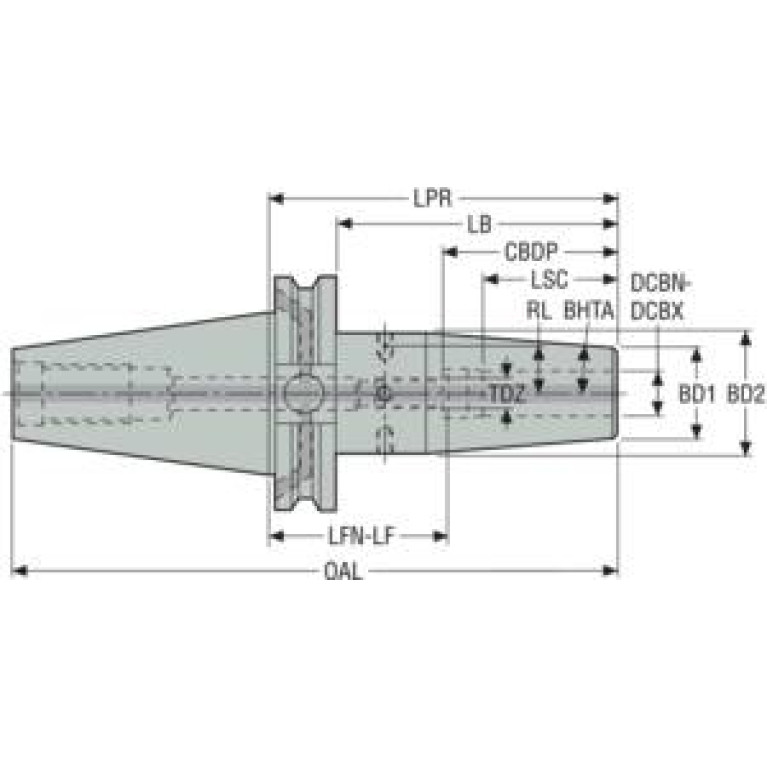

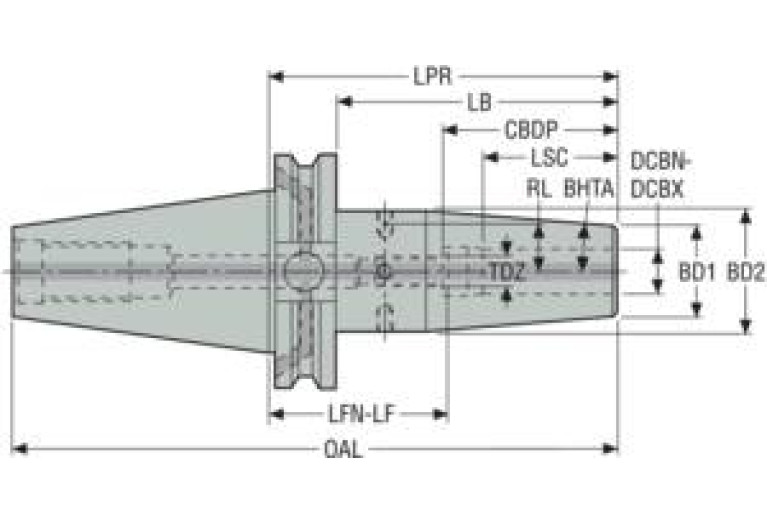

LPR Protruding length

95 mm

LSCX Clamping length maximum

22 mm

Name Identifying order number

E2502560302595

OAL Overall length

163.4 mm

TA Taper angle

4.5 Degree

WT Weight of item

1.19 kg
