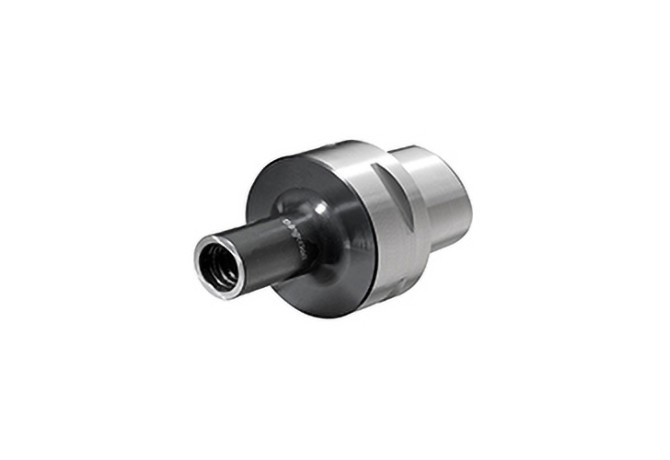

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric CPT63T15SA065

CPT63T15SA065

CPT63T15SA065 CPT63T15SA065 CPT63T15SA065 CPT63T15SA065

CPT63T15SA065

Ingersoll
Артикул: 2927915
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SAI
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0150
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DF Flange diameter
23.9 mm
DIN
CCS06300195
FamilyProducts
PSK-Adaption
HAND Cutting direction
R - Right
ID Technical product number
2927915
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SAI Screw mounting ISCAR
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0150
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAI01500115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR Protruding length
65 mm
Name Identifying order number
CPT63T15SA065
OAL Overall length
95 mm
WT Weight of item
0.832 kg
