Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric CAT50ADB-PMC0.750-3.000

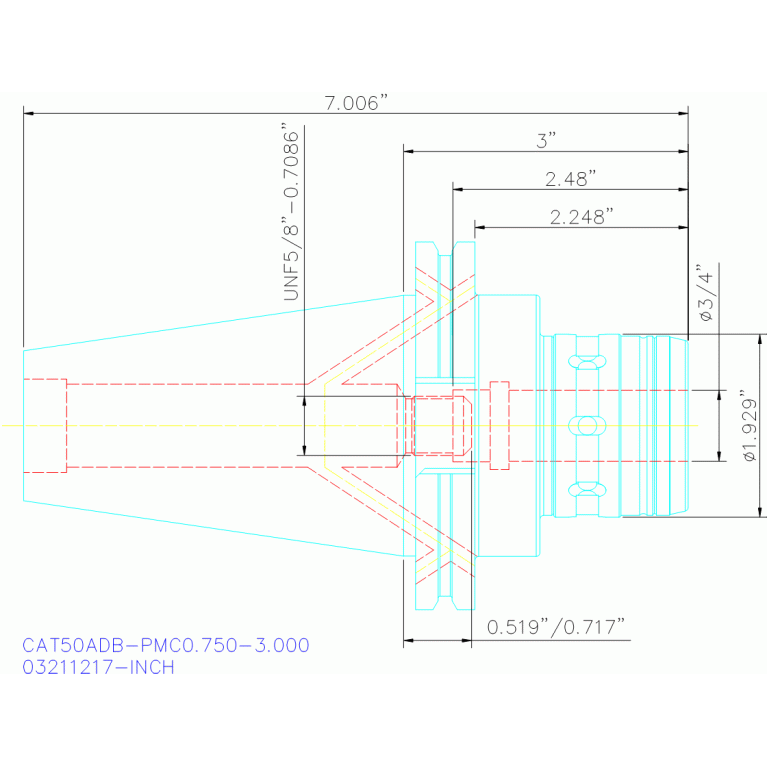

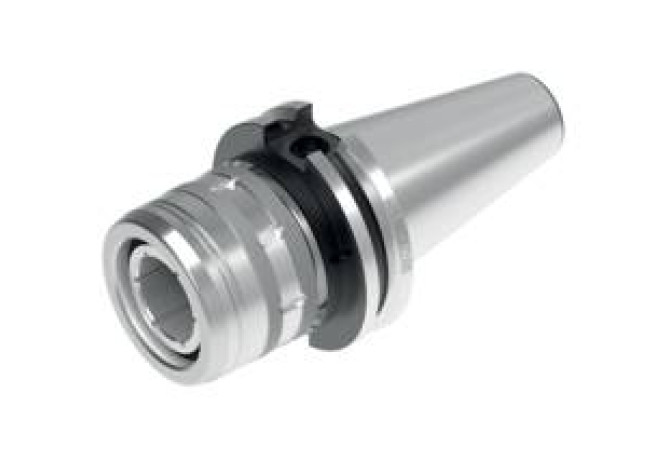

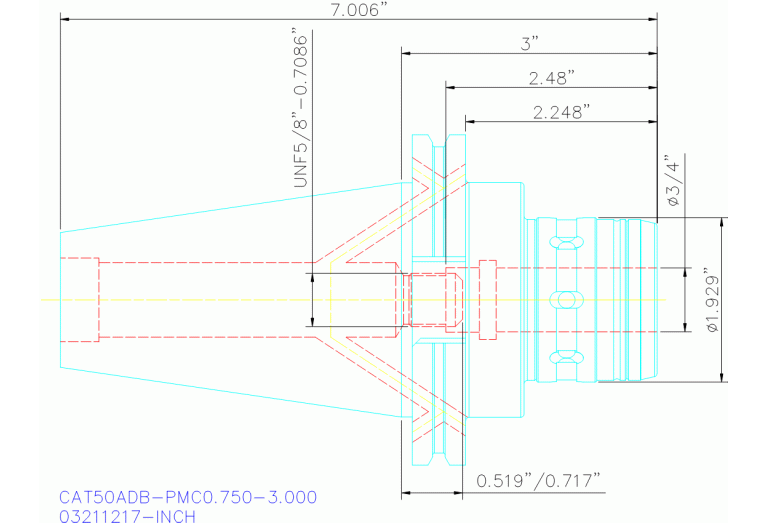

CAT50ADB-PMC0.750-3.000

CAT50ADB-PMC0.750-3.000 CAT50ADB-PMC0.750-3.000 CAT50ADB-PMC0.750-3.000 CAT50ADB-PMC0.750-3.000

CAT50ADB-PMC0.750-3.000

Seco
Артикул: 03211217
В наличии
В корзину
Описание
Характеристики

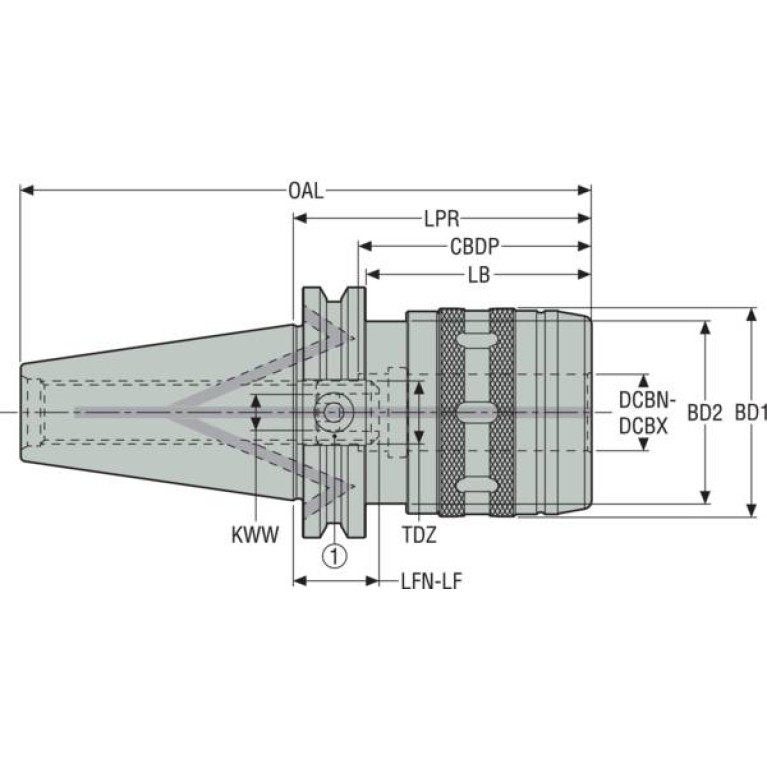

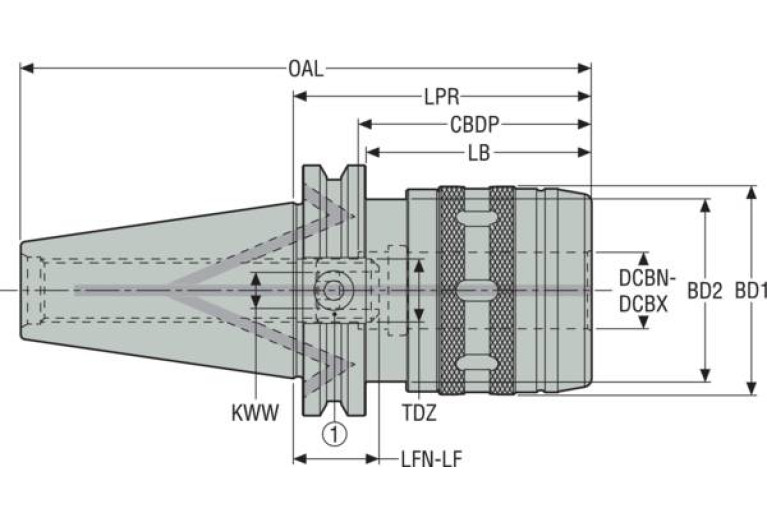

BD Body diameter
70 mm
BD Body diameter 2
69.85 mm
BLQ Balance quality code
PB
CCFWS Connection code form
04
CCSWS Connection code style
5
CCTWS Connection code type
SZC
CCUWS Connection code unit base
9
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0750
DCONWS Diameter
19.05 mm
DCONXWS Connection diameter max
19.05 mm
DCP Data chip provision
1 - With data chip
DIN
SKG04003795
FamilyProducts
CAT50ADB-PMC0.750-3.000
HAND Cutting direction
N - Neutral
ID Technical product number
03211217
Interface codes
J6 / J61
ISO
SKG37C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
39.624 mm
LF Functional length
18.212 mm
LOC-01 CCFWS Connection code form
04
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZC Collet adapter SANDVIK Coromant
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0750
LOC-01 DCONWS Diameter
19.05 mm
LOC-01 DCONXWS Connection diameter max
19.05 mm
LOC-01 ISO
SZC04R7500****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZC07500495
LOC-03 CCFMS Connection code form
37
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG37C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04003795
LPR Protruding length
76.2 mm
Name Identifying order number
CAT50ADB-PMC0.750-3.000
OAL Overall length
39.7 mm
RPMX Rotational speed maximum
15000 1/min
THSZWS Connection thread nominal size workpiece side
UNF 5/8"
WT Weight of item
3.392 kg
