Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric CAT40ADB-ER40-4.000

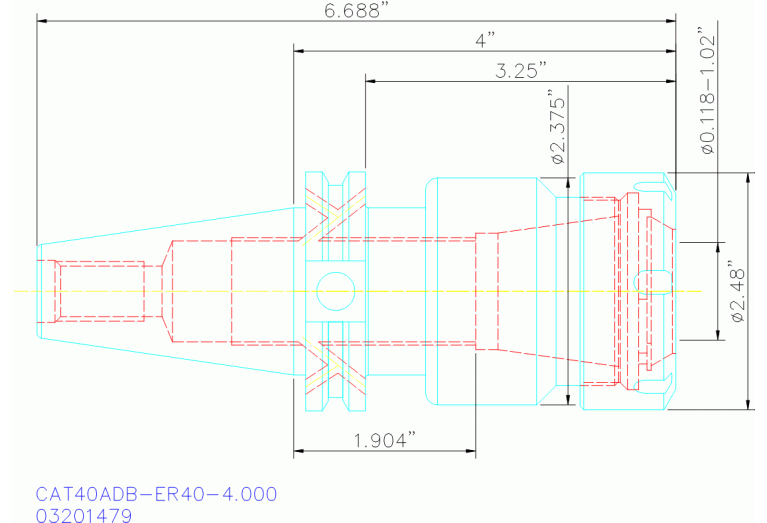

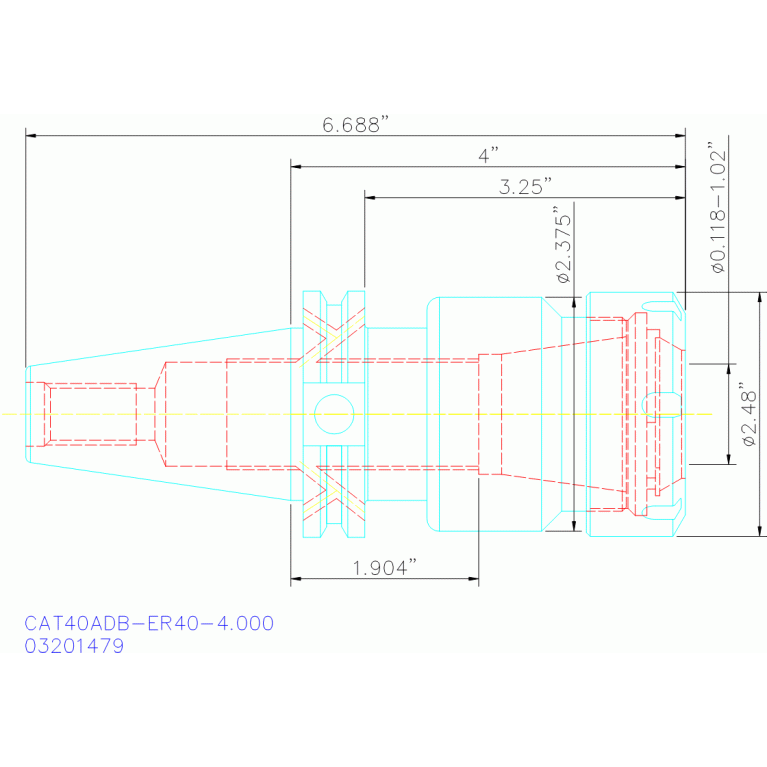

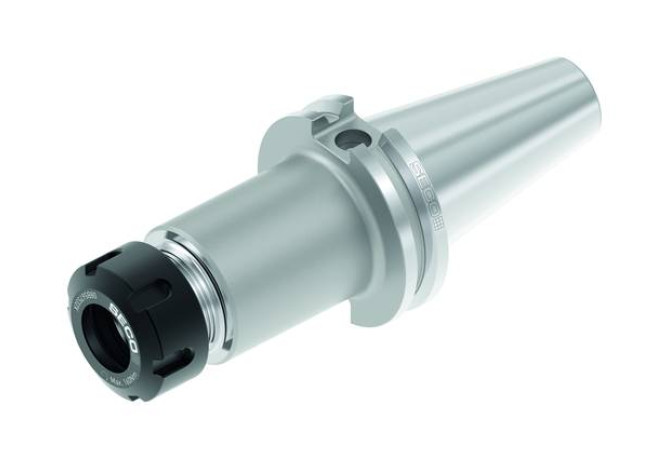

CAT40ADB-ER40-4.000

CAT40ADB-ER40-4.000 CAT40ADB-ER40-4.000 CAT40ADB-ER40-4.000 CAT40ADB-ER40-4.000

CAT40ADB-ER40-4.000

Seco
Артикул: 03201479
В наличии
В корзину
Описание
Характеристики

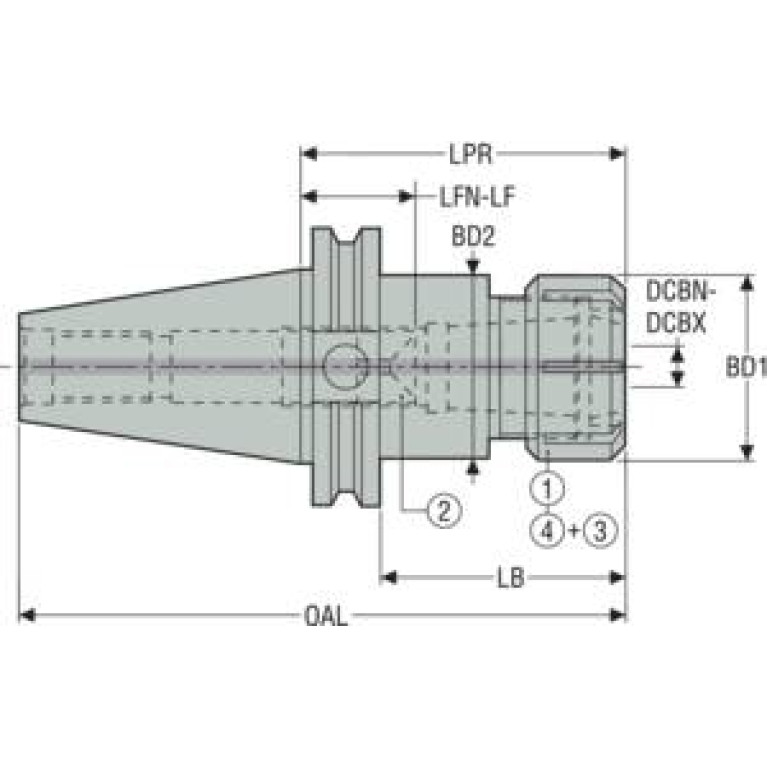

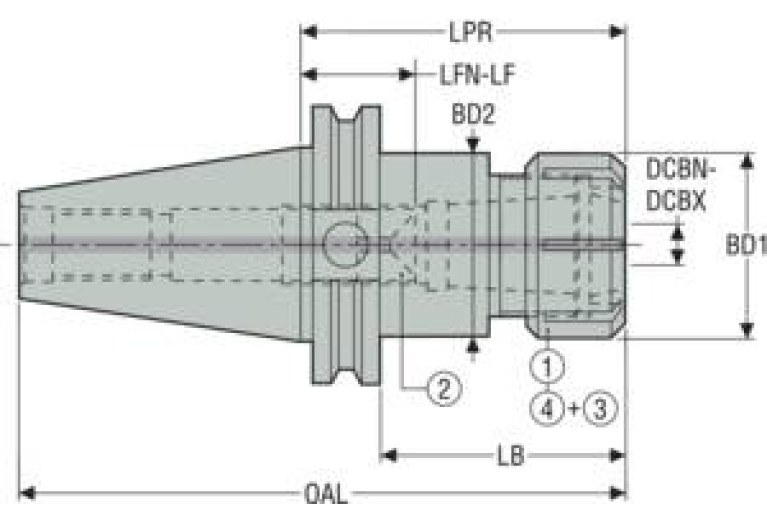

BD Body diameter
63 mm
BD Body diameter 2
60.33 mm
CCFWS Connection code form
02
CCSWS Connection code style
5
CCTWS Connection code type
SZD
CCUWS Connection code unit base
9
CNSC Coolant entry style code
7 - Coolant entry, decentral and axially concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0400
DCONWS Diameter
2.997 mm
DCONXWS Connection diameter max
25.984 mm
DCP Data chip provision
0 - Without data chip
DIN
SKG04003795
FamilyProducts
CAT40ADB-ER40-4.000
HAND Cutting direction
N - Neutral
ID Technical product number
03201479
Interface codes
J6 / J61
ISO
SKG37C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
82.55 mm
LF Functional length
48.26 mm
LOC-01 CCFWS Connection code form
02
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SZD Collet adapter DIN / ISO
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0400
LOC-01 DCONWS Diameter
2.997 mm
LOC-01 DCONXWS Connection diameter max
25.984 mm
LOC-01 ISO
SZD02C0400$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SZD04000295
LOC-03 CCFMS Connection code form
37
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
SKG37C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04003795
LPR Protruding length
101.6 mm
Name Identifying order number
CAT40ADB-ER40-4.000
OAL Overall length
169.93 mm
WT Weight of item
1.7 kg
