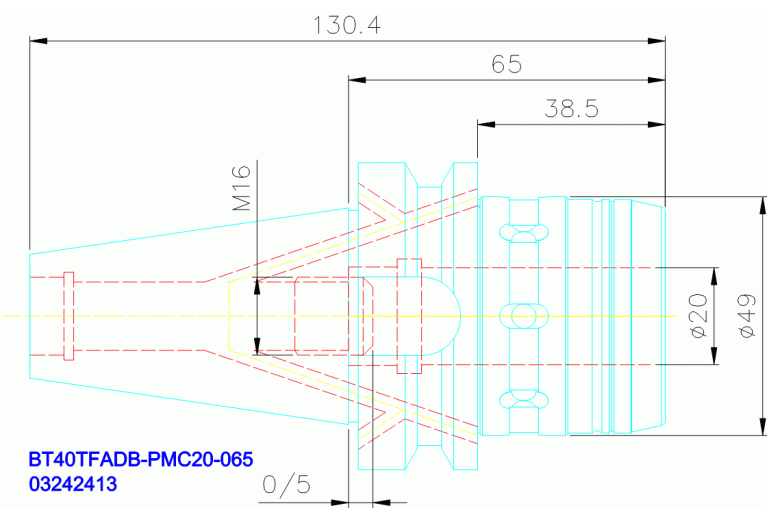

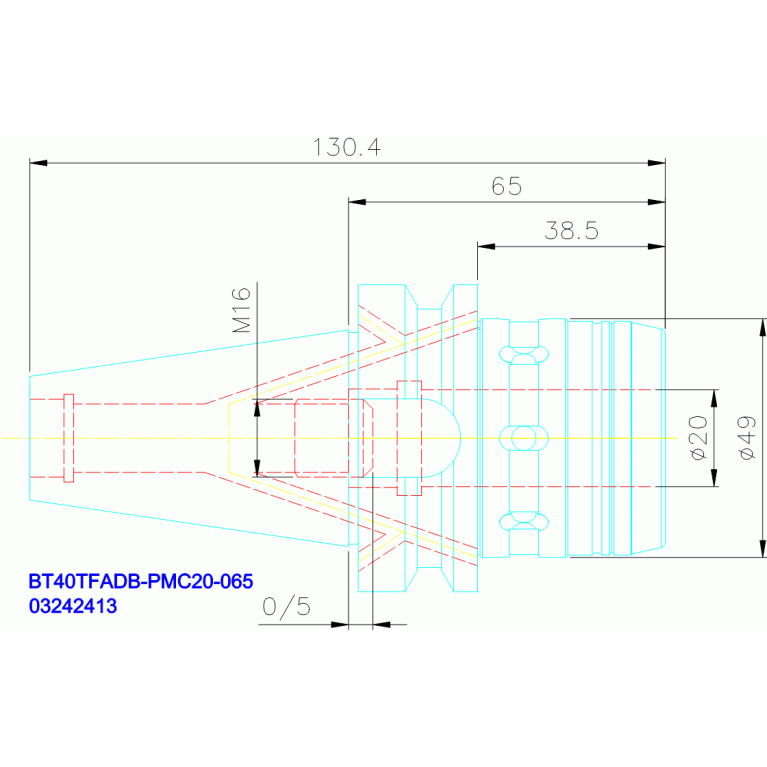

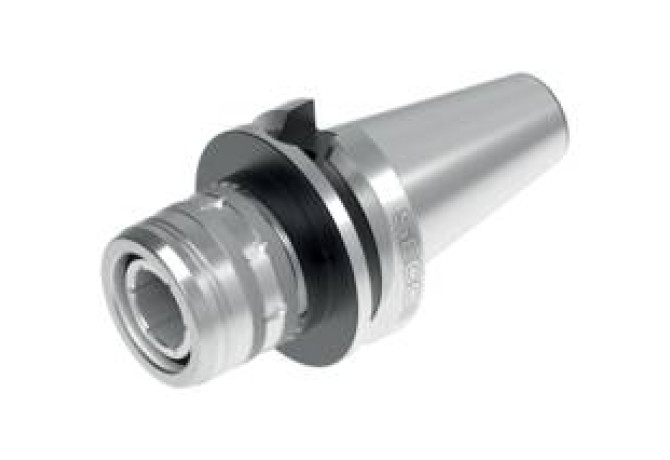

BT40TFADB-PMC20-065

Артикул: 03242413

В наличии

В корзину

Описание

Характеристики

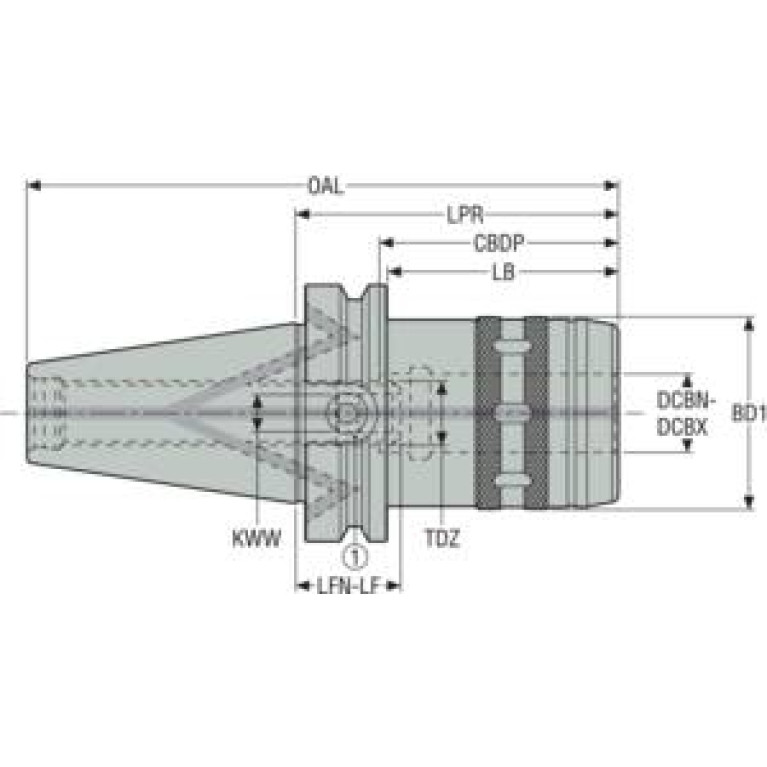

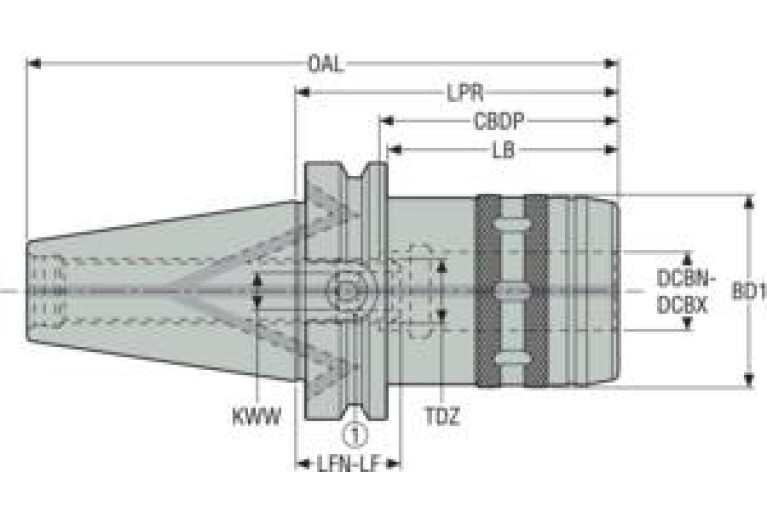

BD Body diameter

65 mm

BLQ Balance quality code

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SZC

CCUWS Connection code unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0200

DCONWS Diameter

20 mm

DCONXWS Connection diameter max

20 mm

DCP Data chip provision

1 - With data chip

DIN

SKG04005795

FamilyProducts

BT40TFADB-PMC20-065

HAND Cutting direction

N - Neutral

ID Technical product number

03242413

Interface codes

J6 / J61

ISO

SKG57C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

LB Body length 1

36.5 mm

LF Functional length

7 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZC Collet adapter SANDVIK Coromant

LOC-01 CCUWS Connection code unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Connection size code

0200

LOC-01 DCONWS Diameter

20 mm

LOC-01 DCONXWS Connection diameter max

20 mm

LOC-01 ISO

SZC04G2000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZC02000495

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03 ISO

SKG57C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04005795

LPR Protruding length

65 mm

Name Identifying order number

BT40TFADB-PMC20-065

OAL Overall length

128.4 mm

RPMX Rotational speed maximum

10000 1/min

THSZWS Connection thread nominal size workpiece side

M16

WT Weight of item

1.295 kg
