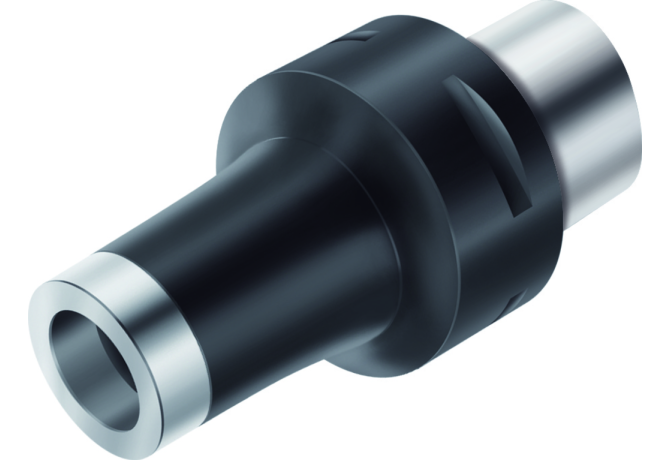

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric AK580.C8.T36.60

AK580.C8.T36.60

AK580.C8.T36.60 AK580.C8.T36.60 AK580.C8.T36.60

AK580.C8.T36.60

Walter
Артикул: 7668941
В наличии
В корзину
Описание
Характеристики
BD Body diameter
36 mm
BD Body diameter 2
36 mm
CCFWS Form
01
CCSWS Style
5
CCTWS Type
SAW
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0360
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS08000195
FamilyProducts
Walter Capto TM adaptor AK580.C
ID Technical product number
7668941
Interface codes
J6 / J61
ISO
CCS01C0800$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
10 mm
LB Length 2
27 mm
LB Length Body diameter 3
30 mm
LF Functional length
60 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
SAW Screw mounting WALTER
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0360
LOC-01 ISO
SAW01C0360****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAW03600195
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0800
LOC-03 DCONMS Diameter
80 mm
LOC-03 ISO
CCS01C0800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000195
LPR Protruding length
60 mm
LS Shank length
48 mm
Name Identifying order number
AK580.C8.T36.60
OAL Overall length
108 mm
RPMX Rotational speed maximum
14000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
1.87 kg
