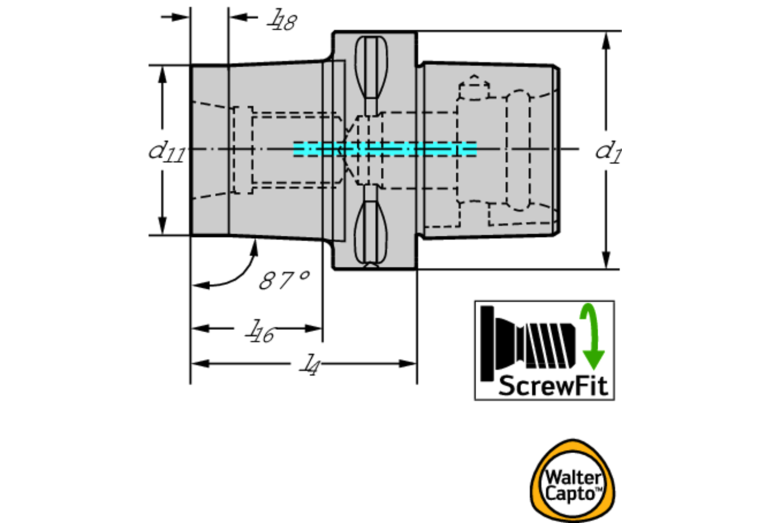

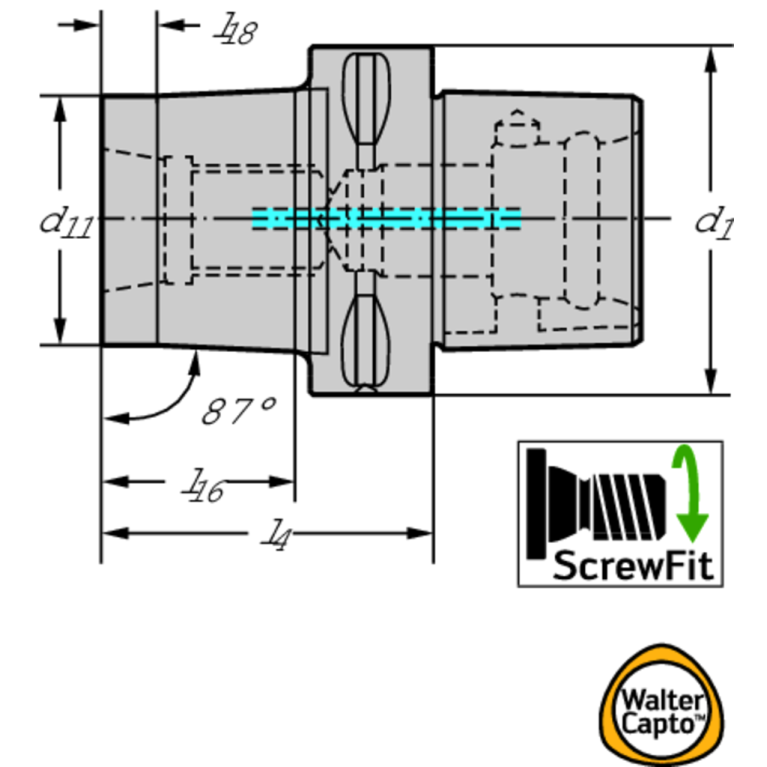

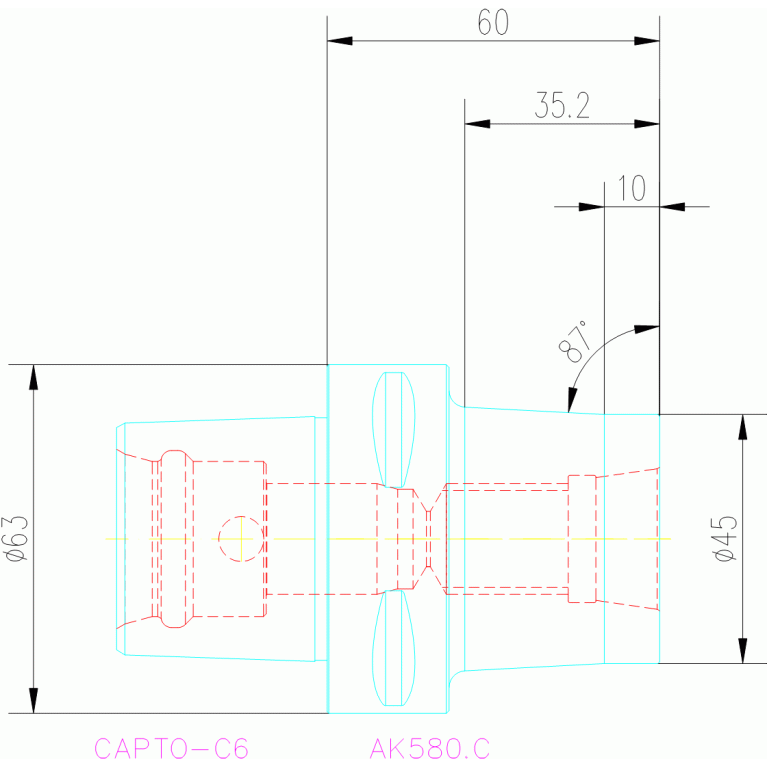

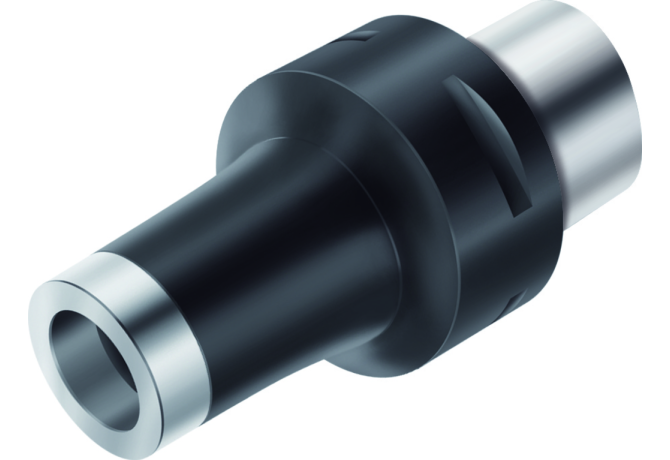

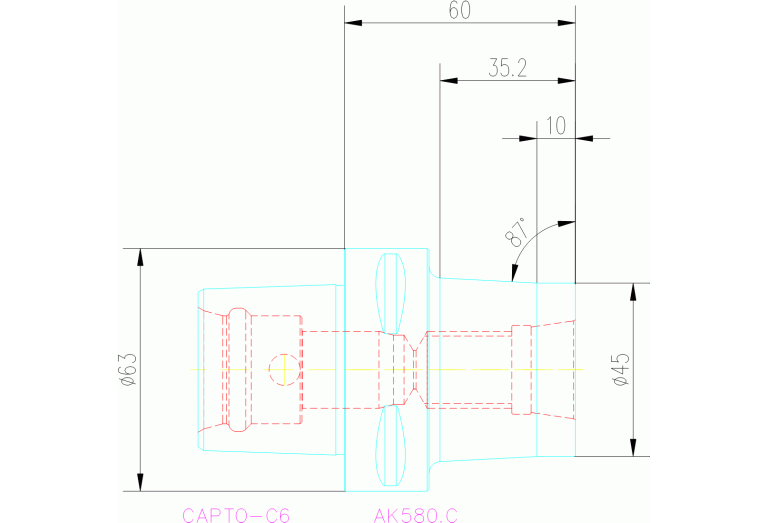

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric AK580.C6.T45.60

AK580.C6.T45.60

AK580.C6.T45.60

AK580.C6.T45.60

AK580.C6.T45.60

AK580.C6.T45.60

AK580.C6.T45.60

AK580.C6.T45.60

Walter

Артикул: 5041009

В наличии

В корзину

Описание

Характеристики

BD Body diameter

45 mm

CCFWS Form

01

CCSWS Style

5

CCTWS Type

SAW

CCUWS Unit base

9

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0450

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS06300195

FamilyProducts

Walter Capto TM adaptor AK580.C

ID Technical product number

5041009

Interface codes

J6 / J61

ISO

CCS01C0630$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

10 mm

LB Length 2

35 mm

LF Functional length

60 mm

LOC-01 CCFWS Form

01

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

SAW Screw mounting WALTER

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0450

LOC-01 ISO

SAW01C0450****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAW04500195

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03 ISO

CCS01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR Protruding length

60 mm

Name Identifying order number

AK580.C6.T45.60

OAL Overall length

98 mm

RPMX Rotational speed maximum

20000 1/min

STDNO Standard

ISO26623-1

WT Weight of item

1.19 kg
