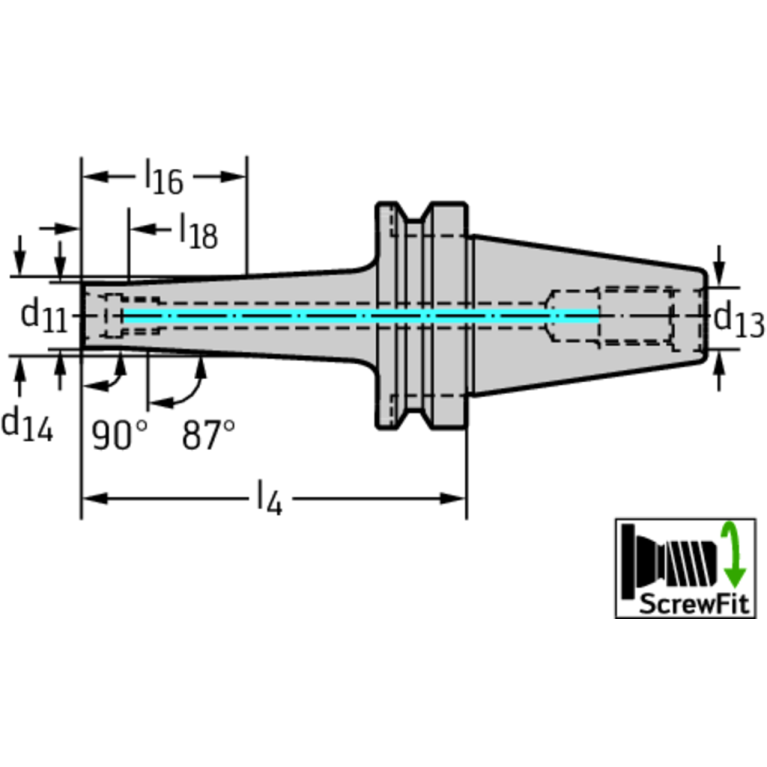

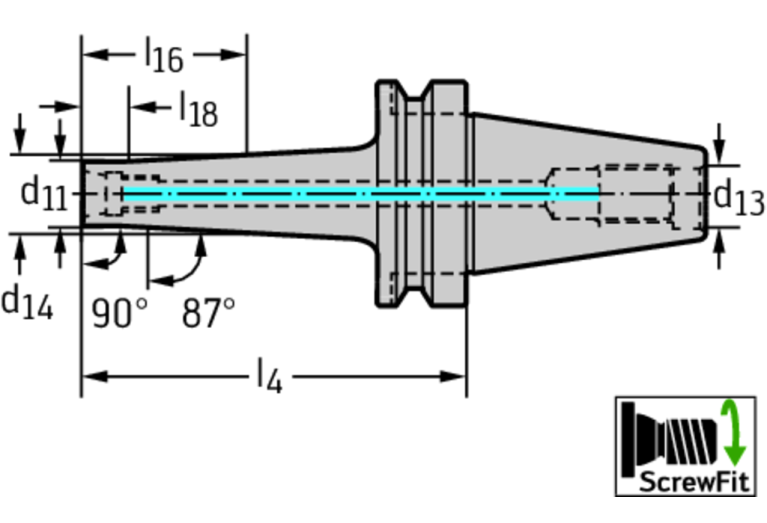

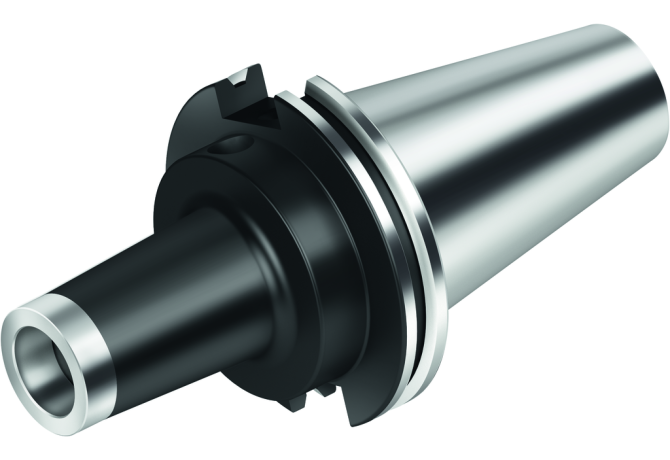

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric AK540.US50.T28.200

AK540.US50.T28.200

Артикул: 5027862

В наличии

В корзину

Описание

Характеристики

BD Body diameter

28 mm

BD Body diameter 2

28 mm

BD Body diameter 3

70.1 mm

CCFWS Form

CCSWS Style

CCTWS Type

SAW

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0280

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

98.42 mm

DIN

SKG05003795

FamilyProducts

Adaptor ASME B5.50 CAT-50 AK540

ID Technical product number

5027862

Interface codes

J6 / J61

ISO

SKG37C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

10.008 mm

LB Length 2

48 mm

LB Length Body diameter 3

177 mm

LF Functional length

200 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

SAW Screw mounting WALTER

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0280

LOC-01 ISO

SAW01C0280****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAW02800195

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

28 mm

LOC-03 ISO

SKG37C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05003795

LPR Protruding length

200 mm

LS Shank length

101.75 mm

Name Identifying order number

AK540.US50.T28.200

NOH Mounting hole count

OAL Overall length

301.8 mm

RPMX Rotational speed maximum

12000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ASME B5.50

THSZMS Connection thread nominal size machine side

1"-8

THSZWS Connection thread nominal size workpiece side

1"-8

WT Weight of item

4.44 kg
