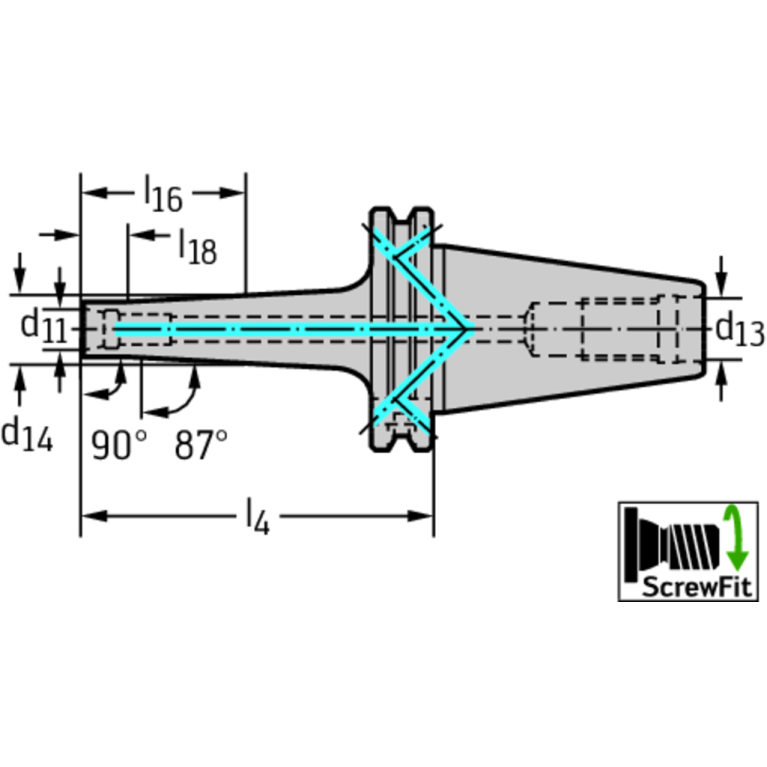

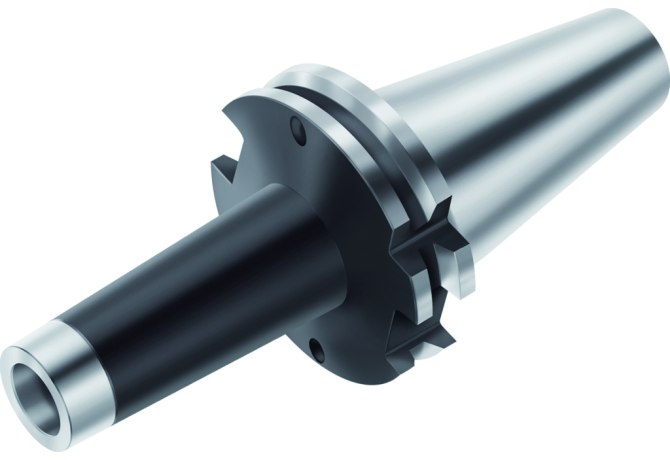

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric AK540.S50.T45.100

AK540.S50.T45.100

Артикул: 5016127

В наличии

В корзину

Описание

Характеристики

BD Body diameter

45 mm

BD Body diameter 2

45 mm

BD Body diameter 3

52.023 mm

BD Body diameter 4

97.5 mm

CCFWS Form

CCSWS Style

CCTWS Type

SAW

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0450

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

97.5 mm

DIN

SKG05001795

FamilyProducts

DIN 69871 AD/B adaptor AK540

ID Technical product number

5016127

Interface codes

J6 / J61

ISO

SKG17C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

10 mm

LB Length 2

57 mm

LB Length Body diameter 3

80.9 mm

LB Length Body diameter 4

100 mm

LF Functional length

100 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

SAW Screw mounting WALTER

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0450

LOC-01 ISO

SAW01C0450****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAW04500195

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

45 mm

LOC-03 ISO

SKG17C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05001795

LPR Protruding length

100 mm

LS Shank length

101.75 mm

Name Identifying order number

AK540.S50.T45.100

NOH Mounting hole count

OAL Overall length

201.8 mm

RPMX Rotational speed maximum

12000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO7388-1

THSZMS Connection thread nominal size machine side

M24

THSZWS Connection thread nominal size workpiece side

M24

WT Weight of item

3.7 kg
