Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric AC001-H63-B27-260

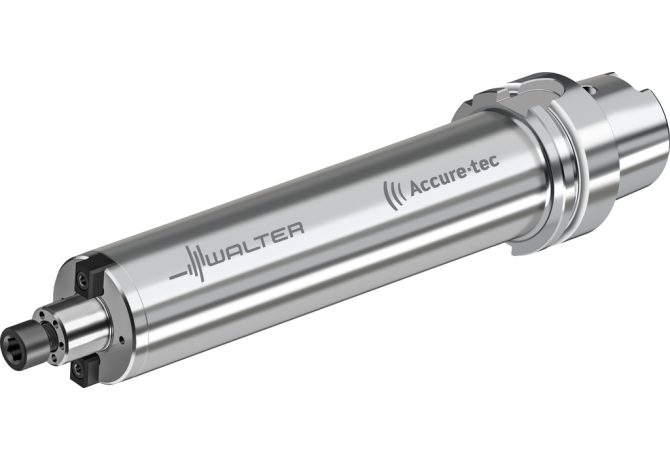

AC001-H63-B27-260

Артикул: 7835001

В наличии

В корзину

Описание

Характеристики

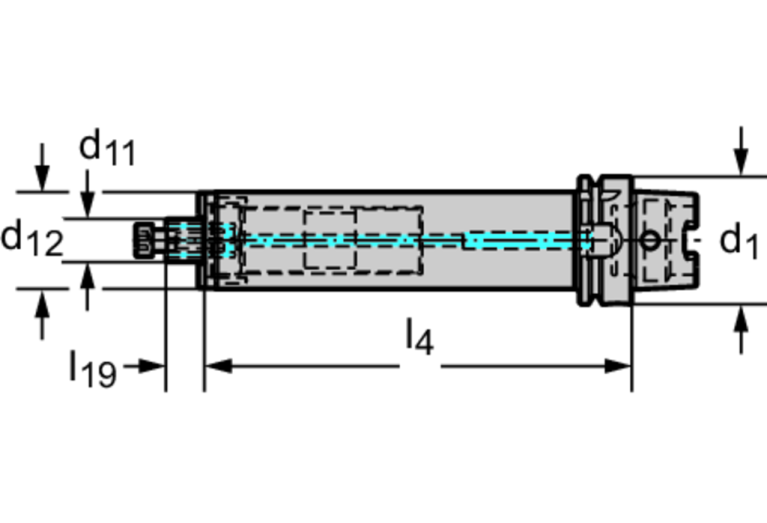

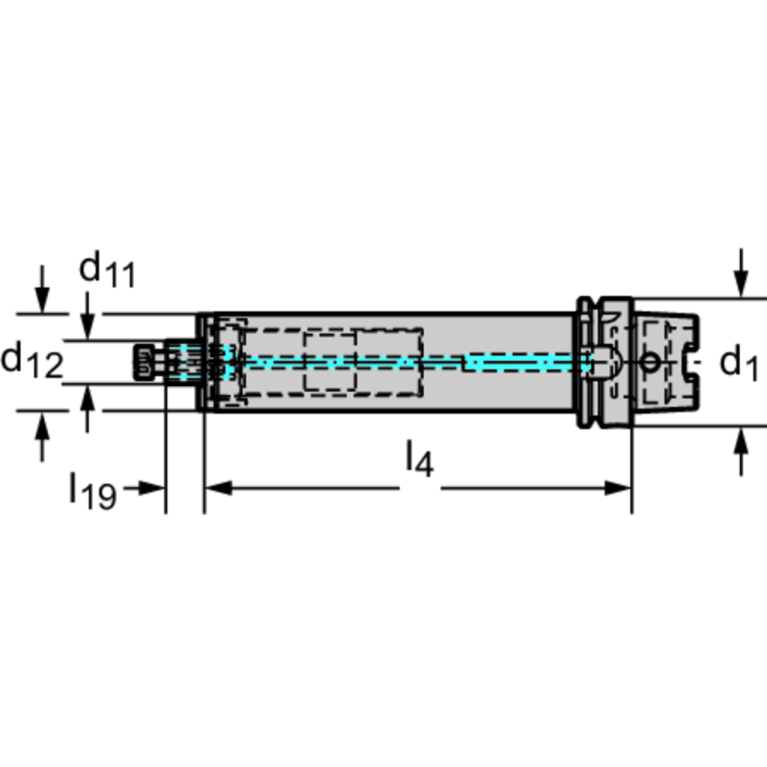

BD Body diameter

60 mm

CCFWS Form

CCSWS Style

CCTWS Type

FDA

CCUWS Unit base

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0270

DCONWS Diameter

27 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

63 mm

DIN

HSK06300195

FamilyProducts

HSK adaptor – Vibration-damped AC001-H

ID Technical product number

7835001

Interface codes

J6 / J61

ISO

HSK01C0630$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

234 mm

LF Functional length

260 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Type

FDA Milling arbor mounting

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0270

LOC-01 DCONWS Diameter

27 mm

LOC-01 ISO

FDA12G2700****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA02701210

LOC-02 CCFWS Form

LOC-02 CCSWS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-02 CCTWS Type

FDA Milling arbor mounting

LOC-02 CCUWS Unit base

1 Metric with coolant

LOC-02 CZCWS Size code

0270

LOC-02 DCONWS Diameter

27 mm

LOC-02 ISO

FDA22G2700****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

FDA02702210

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

HSK Hollow taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03 ISO

HSK01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LPR Protruding length

260 mm

LS Shank length

21 mm

Name Identifying order number

AC001-H63-B27-260

OAL Overall length

313 mm

RPMX Rotational speed maximum

6000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ISO12164-1

WT Weight of item

6.56 kg
