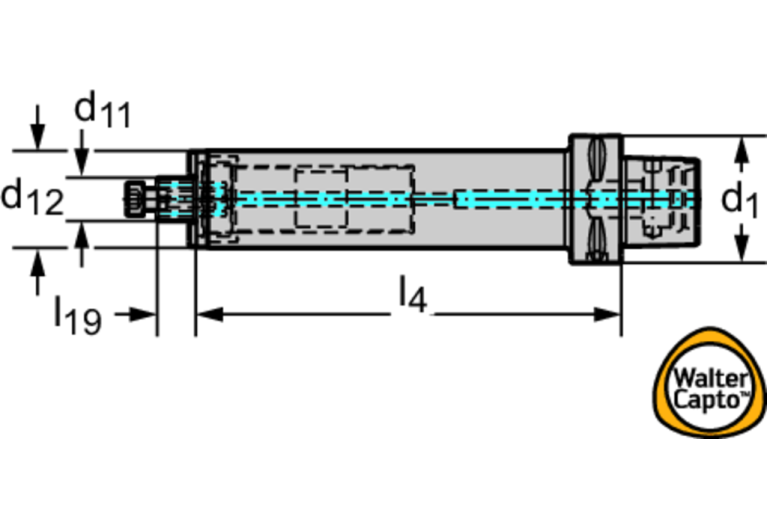

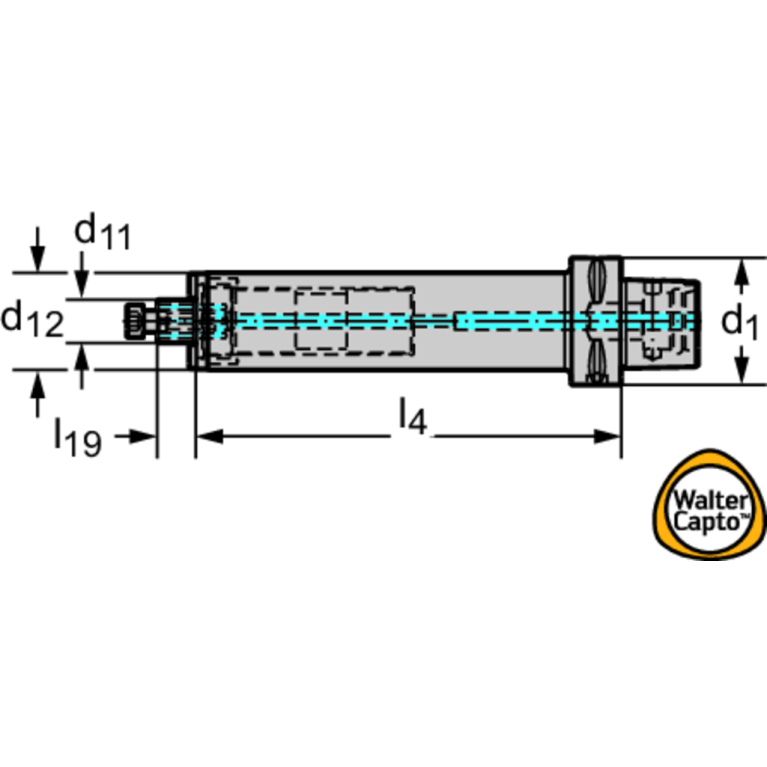

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric AC001-C8-B32-330

AC001-C8-B32-330

AC001-C8-B32-330 AC001-C8-B32-330 AC001-C8-B32-330

AC001-C8-B32-330

Walter
Артикул: 7834977
В наличии
В корзину
Описание
Характеристики
BD Body diameter
78 mm
CCFWS Form
12
CCSWS Style
0
CCTWS Type
FDA
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0320
DCONWS Diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS08000395
FamilyProducts
Walter Capto TM Adaptor – vibration damped AC001-C
ID Technical product number
7834977
Interface codes
J6 / J61
ISO
CCS03C0800$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
297 mm
LF Functional length
330 mm
LOC-01 CCFWS Form
12
LOC-01 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Type
FDA Milling arbor mounting
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0320
LOC-01 DCONWS Diameter
32 mm
LOC-01 ISO
FDA12G3200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA03201210
LOC-02 CCFWS Form
12
LOC-02 CCSWS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-02 CCTWS Type
FDA Milling arbor mounting
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0320
LOC-02 DCONWS Diameter
32 mm
LOC-02 ISO
FDA22G3200****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
FDA03202210
LOC-03 CCFMS Form
03
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0800
LOC-03 DCONMS Diameter
80 mm
LOC-03 ISO
CCS03C0800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000395
LPR Protruding length
330 mm
LS Shank length
24 mm
Name Identifying order number
AC001-C8-B32-330
OAL Overall length
402 mm
RPMX Rotational speed maximum
4000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
14.4 kg
