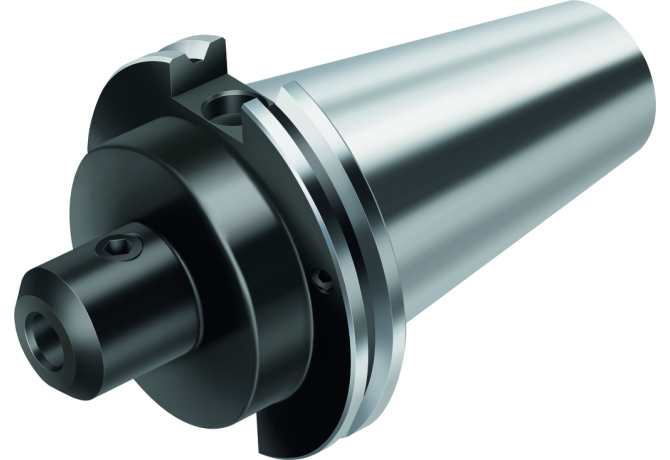

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric AB044.K50-W39-102

AB044.K50-W39-102

Артикул: 6855002

В наличии

В корзину

Описание

Характеристики

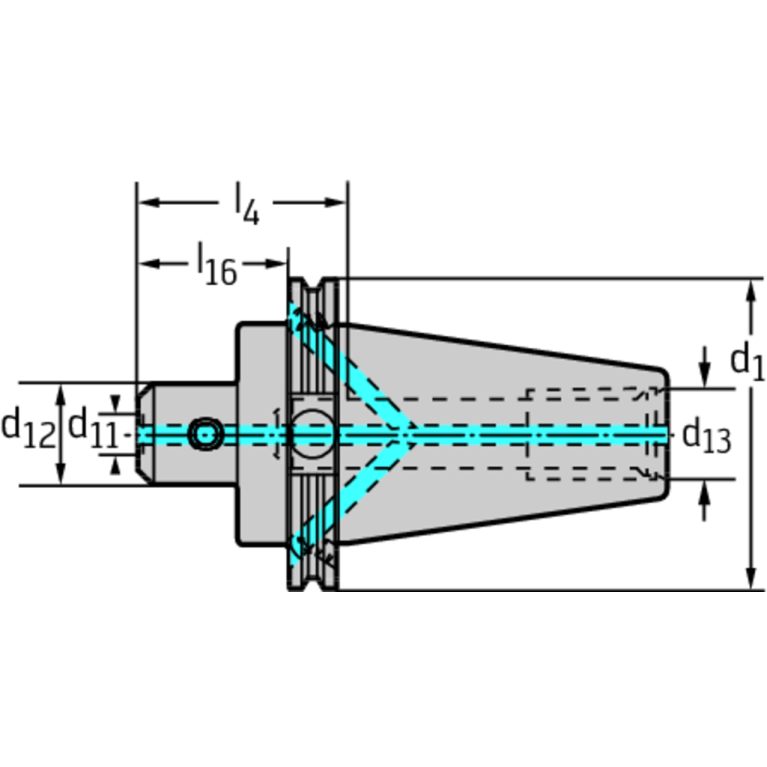

BD Body diameter

48.5 mm

BD Body diameter 2

69.8 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

1500

DCONWS Diameter

38.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

98.42 mm

DIN

SKG05003795

FamilyProducts

ASME B5.50 Weldon shank adaptor AB044.K

ID Technical product number

6855002

Interface codes

J6 / J61

ISO

SKG37C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

10.7 mm

LB Length 2

82.6 mm

LF Functional length

101.6 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

3 Inch with coolant

LOC-01 CZCWS Size code

1500

LOC-01 DCONWS Diameter

38.1 mm

LOC-01 ISO

ZYL18G3810****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL15001035

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

3 Inch with coolant

LOC-02 CZCWS Size code

1500

LOC-02 DCONWS Diameter

38.1 mm

LOC-02 ISO

ZYL10G3810****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL03811015

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

38.1 mm

LOC-03 ISO

SKG37C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05003795

LPR Protruding length

101.6 mm

LS Shank length

101.75 mm

Name Identifying order number

AB044.K50-W39-102

OAL Overall length

203.4 mm

RPMX Rotational speed maximum

8000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ASME B5.50

THSZMS Connection thread nominal size machine side

1"-8

WT Weight of item

4.06 kg
