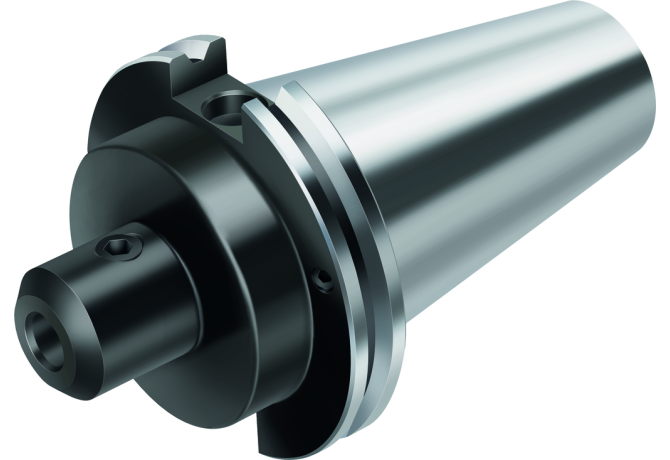

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric AB044.K40-W07-064

AB044.K40-W07-064

Артикул: 6840691

В наличии

В корзину

Описание

Характеристики

BD Body diameter

16.6 mm

BD Body diameter 2

22.2 mm

BD Body diameter 3

44.4 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0250

DCONWS Diameter

6.35 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

63.5 mm

DIN

SKG04003795

FamilyProducts

ASME B5.50 Weldon shank adaptor AB044.K

ID Technical product number

6840691

Interface codes

J6 / J61

ISO

SKG37C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

2.8 mm

LB Length 2

28.4 mm

LB Length Body diameter 3

44.4 mm

LB Length Body diameter 4

63.5 mm

LF Functional length

63.5 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

3 Inch with coolant

LOC-01 CZCWS Size code

0250

LOC-01 DCONWS Diameter

6.35 mm

LOC-01 ISO

ZYL18F6350****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02501035

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

3 Inch with coolant

LOC-02 CZCWS Size code

0250

LOC-02 DCONWS Diameter

6.35 mm

LOC-02 ISO

ZYL10F6350****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL00631015

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

6.35 mm

LOC-03 ISO

SKG37C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04003795

LPR Protruding length

63.5 mm

LS Shank length

68.4 mm

Name Identifying order number

AB044.K40-W07-064

OAL Overall length

131.9 mm

RPMX Rotational speed maximum

12000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ASME B5.50

THSZMS Connection thread nominal size machine side

5/8"-11

WT Weight of item

1.11 kg
