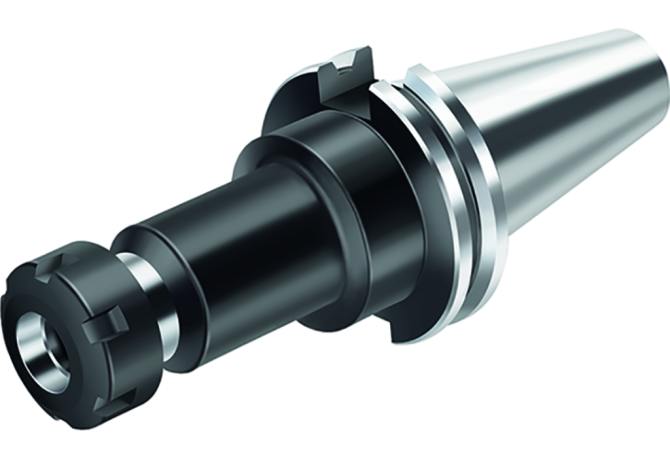

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric AB009.K40-ER20-105

AB009.K40-ER20-105

Артикул: 6840716

В наличии

В корзину

Описание

Характеристики

BD Body diameter

34.04 mm

BD Body diameter 2

44.4 mm

CCFWS Form

CCSWS Style

CCTWS Type

SZD

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0200

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

63.5 mm

DIN

SKG04003795

DLN Diameter lock nut

34.04 mm

FamilyProducts

ASME B5.50 ER collet chuck AB009.K

ID Technical product number

6840716

Interface codes

J6 / J61

ISO

SKG37C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

69.6 mm

LB Length 2

85.6 mm

LF Functional length

89.366 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Unit base

9 non-dimensional size with coolant

LOC-01 CZCWS Size code

0200

LOC-01 ISO

SZD02C0200****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD02000295

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

21 mm

LOC-03 ISO

SKG37C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG04003795

LPR Protruding length

104.64 mm

LS Shank length

68.4 mm

Name Identifying order number

AB009.K40-ER20-105

OAL Overall length

173.04 mm

RPMX Rotational speed maximum

18000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ASME B5.50

THSZMS Connection thread nominal size machine side

5/8"-11

WT Weight of item

1.32 kg
