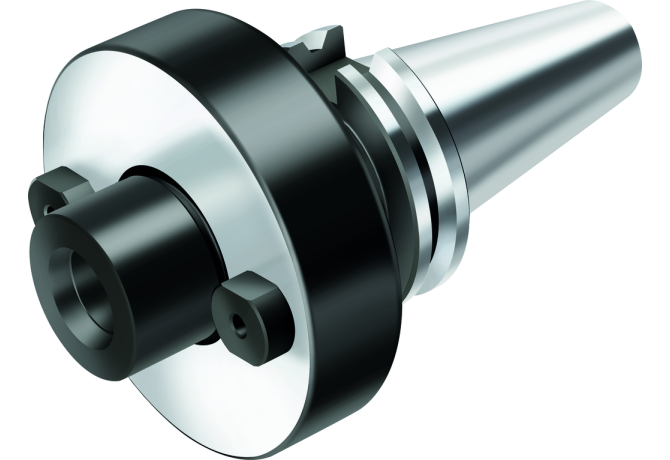

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric AA001.K50-B63-061

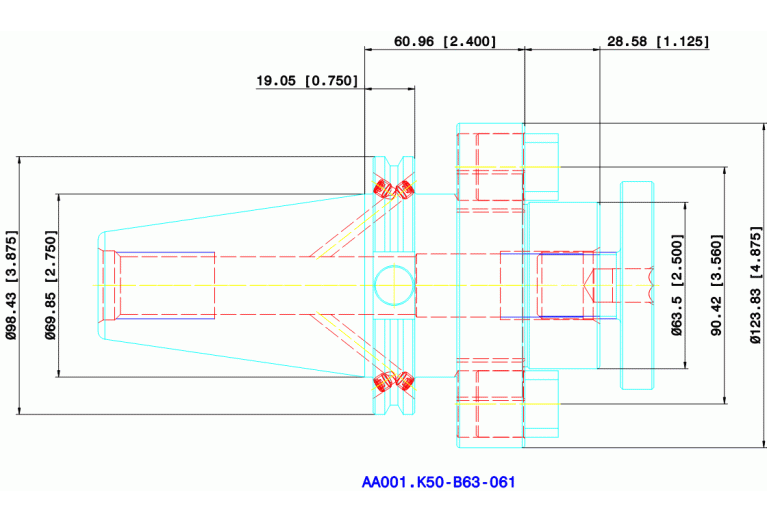

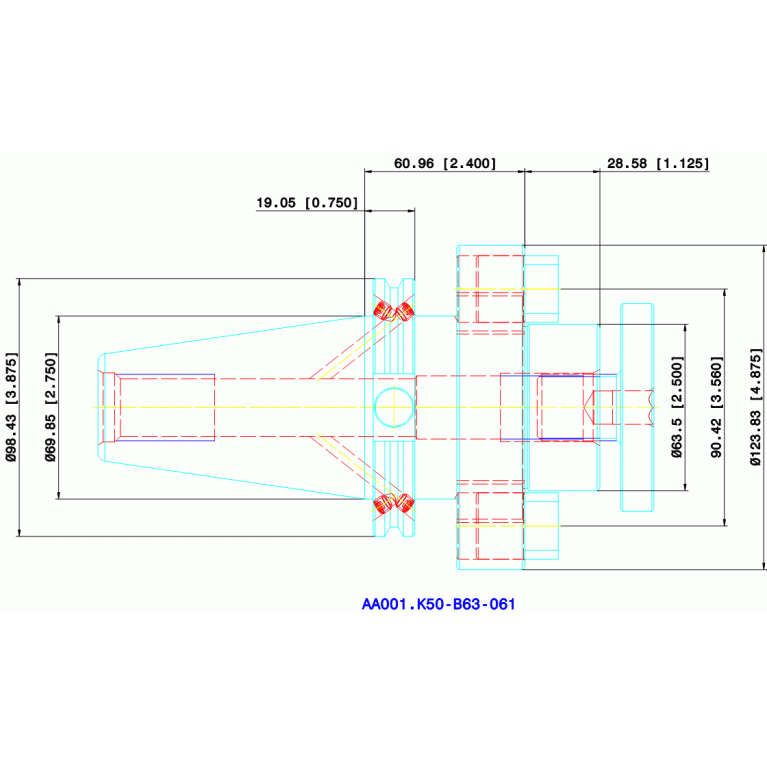

AA001.K50-B63-061

Артикул: 6840689

В наличии

В корзину

Описание

Характеристики

BD Body diameter

123.82 mm

CCFWS Form

CCSWS Style

CCTWS Type

SPK

CCUWS Unit base

CNSC Coolant entry style code

7 - Coolant entry, decentral and axially concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

2500

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DF Flange diameter

98.42 mm

DIN

SKG05003795

FamilyProducts

ASME B5.50 shell mill arbor AA001.K

ID Technical product number

6840689

Interface codes

J6 / J61

ISO

SKG37C0500$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

60.96 mm

LF Functional length

60.96 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

3 Hole pattern (through bore) machine side or hole pattern (threaded hole) machine side or

LOC-01 CCTWS Type

SPK Spindle nose mounting

LOC-01 CCUWS Unit base

3 Inch with coolant

LOC-01 CZCWS Size code

2500

LOC-01 ISO

SPK02S2500****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SPK25000233

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SKG steep taper shank

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

63.5 mm

LOC-03 ISO

SKG37C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05003795

LPR Protruding length

60.96 mm

LS Shank length

28.58 mm

Name Identifying order number

AA001.K50-B63-061

OAL Overall length

191.34 mm

RPMX Rotational speed maximum

8000 1/min

STDLET Standard letter to the standard number

STDNO Standard

ASME B5.50

WT Weight of item

6.45 kg
